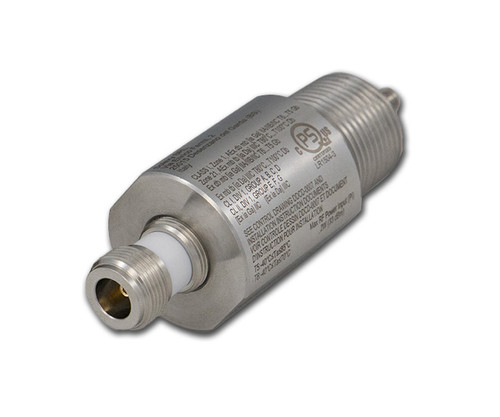

RXN3S0200JXN Antenna Coupler

Solexy

RXN3S0200JXN Antenna Coupler

Part #: RXN3S0200JXN In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details

Contact Us for Pricing

RXN3S0200JXN
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/Solexy-RX-Connectors.pdf
hide_matrix:
True
in_stock:
True
sales_description:
Solexy Explosion-Proof & Intrinsically Safe Antenna Coupler, RX Series, Type N Female (antenna side) to RP-SMA Female (radio side), 3/4" NPT Thread, 100 MHz to 3 GHz, ATEX Zone 1, IECEx, C1D2 Rated, -40 to 85 deg. C.
parent_sku:
RXN3S0200JXN
facet_connector:
N Female
facet_connector:
RP-SMA
facet_mounting:
Direct Mount
facet_rating:
0-4 GHz
facet_type:
Coaxial
Commonly Purchased with:

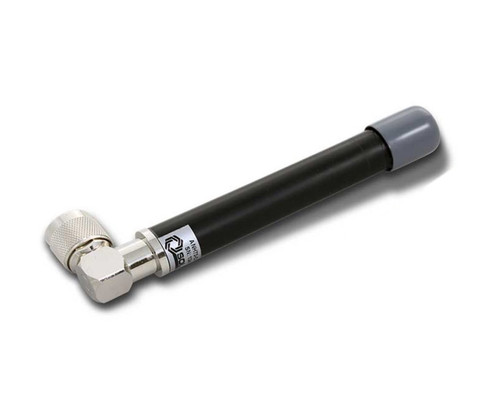

Solexy ANHC2-CNRS Heavy Duty Antenna

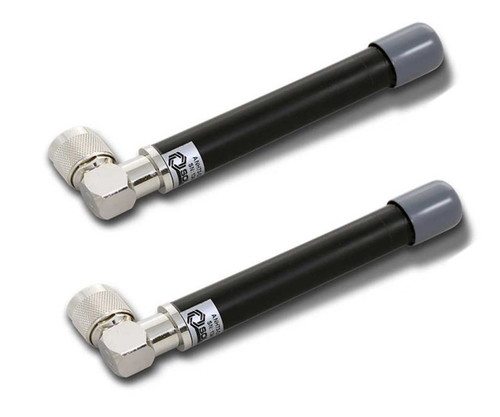

Solexy KA-A33U Heavy Duty Antenna Kit

Details

Solexy Explosion-Proof & Intrinsically Safe Antenna Coupler, RX Series, Type N Female (antenna side) to RP-SMA Female (radio side), 3/4" NPT Thread, 100 MHz to 3 GHz, ATEX Zone 1, IECEx, C1D2 Rated, -40 to 85 deg. C.

Solexy’s patented (7,057,577) Explosion-Proof Antenna Coupler permits the installation of non-Ex certified antennas in hazardous areas.

This coupler is designed to be used directly with listed explosion proof housings or conduit fittings.

An integrated blocking circuit prevents hazardous energy reaching the antenna if a radio, modem or access point failure occurs. It also allows for antenna removal in hazardous areas.

The coupler’s robust design allows for connection to practically any radio and antenna. It is a highly flexible and cost effective solution to hazardous area radio system deployment. The coupler can also be used as a cable bulkhead.

Fitting is approved for hazardous locations and can be installed with a simple wrench.

Features and Benefits

  • SHORT CIRCUIT PROTECTION - Includes integrated blocking circuitry.
  • ENVIRONMENTAL PROTECTION - All required circutry is recessed into fitting and encapsulated against harsh environments
  • CERTIFICATION - The RX Series is certified Atex, IECEx and for USA&Canada as an apparatus, and can be installed per the conditions of acceptability, without further assessment. North America approval (USA&Canada) includes class & divisions and zones. IECEx certification is issued from an Australian notified body, therefore RX can be installed in Queensland mines.
  • NO SEALING FITTING REQUIRED - Permits a wide variety of passive antennas to be installed in hazardous areas. Antennas may be removed and/or installed with power on. Perfect for a cable bulkhead connection.
  • ISOLATED ANTENNA GROUND - Optional antenna ground isolation (RX1..) from housing ground, combined with a capacitive circuit, solves ground loop issues in case of remote mounted antennas and prevents potential ground noise to interfeare with RF signal (patent pending).

Documentation

Spec Sheet
