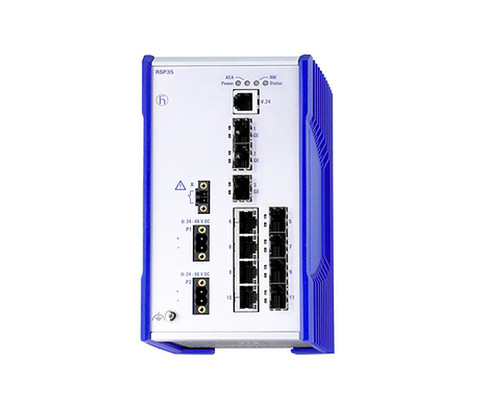

RSP35-08033O6TT-ECCWAHDE2A Rail Switch

Hirschmann RSP35-08033O6TT-ECCWAHDE2A Managed Industrial Power Rail Switch, 8 x 10/100Base-Tx RJ45 Ports, 3 x Gigabit Ethernet SFP slots, 2x 24/36/48VDC, -40 to +70 C with Conformal Coating, Device Level Ring (DLR) Redundancy, HiOS Layer 2 Advanced, ATEX, IECEx.

Hirschmann RSP Series

RSP switches from Hirschmann, with robust hardware and a powerful operating system, are able to withstand extremely harsh environmental conditions. For the first time, the integration of new redundancy protocols allows uninterrupted data communication. These new techniques, PRP (Parallel Redundancy Protocol) and HSR (High-availability Seamless Redundancy), are based on the international IEC62439 standard and therefore guarantee future security and interoperability. Precision time synchronization in accordance with IEEE 1588v2, synchronizes sensors, drives and measuring equipment. Gigabit Ethernet provides for a fast connection to the backbone, while connections to terminal equipment use 100 BASE-TX - either alone or in combination with 100 BASE-FX.

Applications

The RSP switches from Hirschmann are optimized for the type of data communication used in the electricity supply industry, because using Ethernet to link the field-level transformer stations of a power supply grid calls for special network equipment which – such as the RSP switches from Hirschmann - can guarantee uninterrupted communication in the systems under even the harshest conditions. This is the only way of ensuring that end customers receive an uninterrupted power supply.

The RSP switches from Hirschmann can also be used in many other areas. They offer optimum solutions wherever uninterrupted data communication is of the essence, for example in mechanical engineering, production or security applications.

Features and Benefits

The RSP switches from Hirschmann are the first to allow uninterrupted data communication, thus ensuring continuous access to machines and systems, greatly increasing their productivity and hence also their profitability. The switches feature comprehensive security functions to provide all-round protection against network attacks. Since they also support precise synchronization, they can be used to safely network even applications that are subject to stringent real-time requirements.

The Advantages at a Glance

• Extensive range of redundancy methods: PRP, HSR, PRP/HSR Red Box, MRP, Fast MRP, RSTP
• Precise synchronization compliant with IEEE 1588v2
• Enhanced security mechanisms: authentication, radius, role based access, port security,
• SSHv2, HTTPS and SFTP, plus others currently in preparation.
• Fast device replacement, comprehensive logging and storage of all configuration data, plus operating software updates via SD card
• High level of vibration resistance
• Broad immunity to electrostatic discharges and magnetic fields
• Temperature range from -40°C to +70°C
• Power supply 24/36/48 V DC or 60/120/250 V DC and 110/230 V AC
• Strong and compact metal housing
