Rittal 316 Stainless Steel Junction Boxes

Rittal

Rittal 316 Stainless Steel Junction Boxes

Part #: Rittal 316 Stainless Steel Junction Boxes In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $205.41
Rittal 316 Stainless Steel Junction Boxes
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/Rittal-Wallmount-Enclosures.pdf
hide_matrix:
False
sales_description:
Rittal Type 316 Stainless Steel Junction Boxes, NEMA 4X, Includes Back Panel. (Please Specify Size.)
parent_sku:
Rittal 316 Stainless Steel Junction Boxes
facet_application:
Indoor
facet_application:
Outdoor
facet_material:
Stainless Steel
facet_mounting:
Junction
facet_rating:
NEMA 4X
Adding… The item has been added
Commonly Purchased with:

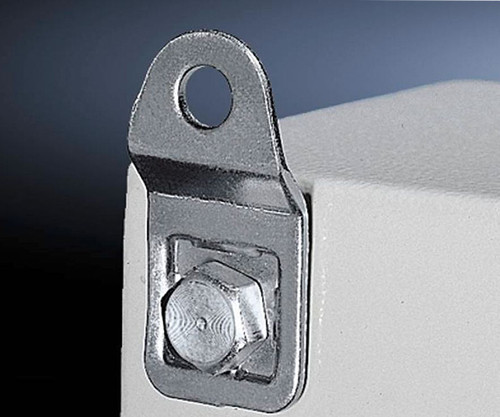

Rittal 1594.000 Wallmount Bracket
$66.04
Rittal Rittal 304 Stainless Steel Junction Boxes
$167.62
See Options

Models

Product ID Description Price
8018.118 Rittal JB060604H6 Junction Box, NEMA 4X, 6x6x4 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 316 Stainless Steel. Includes JBMP0606 Back Panel. $205.41
8018.143 Rittal JB080604H6 Junction Box, NEMA 4X, 8x6x4 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 316 Stainless Steel. Includes JBMP0806 Back Panel. $211.96
8018.145 Rittal JB080804H6 Junction Box, NEMA 4X, 8x8x4 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 316 Stainless Steel. Includes JBMP0808 Back Panel. $278.47
8018.114 Rittal JB100804H6 Junction Box, NEMA 4X, 10x8x4 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 316 Stainless Steel. Includes JBMP1008 Back Panel. $279.51
8018.144 Rittal JB100806H6 Junction Box, NEMA 4X, 10x8x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 316 Stainless Steel. Includes JBMP1008 Back Panel. $308.53
8018.156 Rittal JB121006H6 Junction Box, NEMA 4X, 12x10x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 316 Stainless Steel. Includes JBMP1210 Back Panel. $355.59
8018.115 Rittal JB121206H6 Junction Box, NEMA 4X, 12x12x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 316 Stainless Steel. Includes JBMP1212 Back Panel. $380.62
8018.154 Rittal JB161408H6 Junction Box, NEMA 4X, 16x14x8 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 316 Stainless Steel. Includes JBMP1614 Back Panel. $553.88

Details

Rittal Type 316 Stainless Steel Junction Boxes, NEMA 4X, Includes Back Panel. (Please Specify Size.)

Rittal WM enclosures set the standard for maximum use of space and ease of installation. WM compact enclosures can be used for virtually any application. NEMA protection ratings are ensured through a secure locking system, foamed-in-place gasket and knife-edge perimeter. Features include a body constructed of cold rolled steel, steel doors and zinc-plated mounting panels. WM enclosures are readily available in all of the most popular sizes, protection categories and configurations – including universal disconnect cutout.

Features & Benefits

  • One-piece welded cold-rolled steel body
  • Stainless steel
  • Zinc-plated mounting panel standard
  • Available with universal disconnect cutout
  • Foamed-in-place gasket
  • Quick-release hidden 130° door hinges
  • Flange-trough collar opening channels liquids and dust away from enclosure gasket and enclosure interior
  • Left-hand hinged door (the single door configuration is reversible)
  • Wall-mounting holes
  • Single door enclosures less than 20” in height have one ¼ turn latch with screwdriver insert
