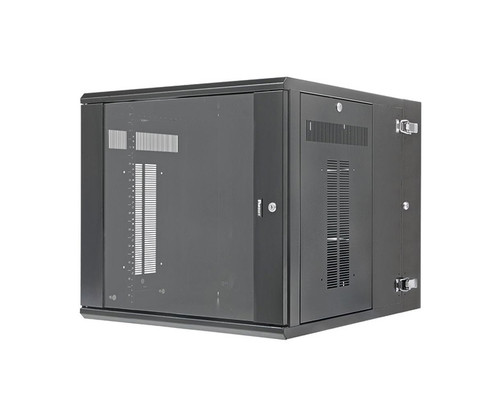

PZWMC12W Wall Mount Cabinet

Panduit PanZone Wall Mount Cabinet, 12U, 23.8"x25"x25" (HxWxD), Adjustable 19" Rails, Window Door, 250lbs Load, Black.

The PanZone® Wall Mount Cabinet is a zone cabling solution for connecting anywhere from 96 to 208 users in applications where a telecommunication room is not available or when security is a concern. There are two options for cable routing and management inside the cabinet. The optional horizontal slack manager can be installed between an active network switch and patch panel to manage the patch cords, which is especially useful for high-density applications. This method allows for improved airflow and cooling of network equipment and is of particular benefit for PoE applications.

The second option is to use traditional horizontal cable managers located adjacent to the patch panels to route the patch cords and any slack should be bundled in the cabinet's vertical channel. Optional rear equipment rails provide additional support for network equipment up to 26.8"" deep, providing versatility for greater range of applications.
