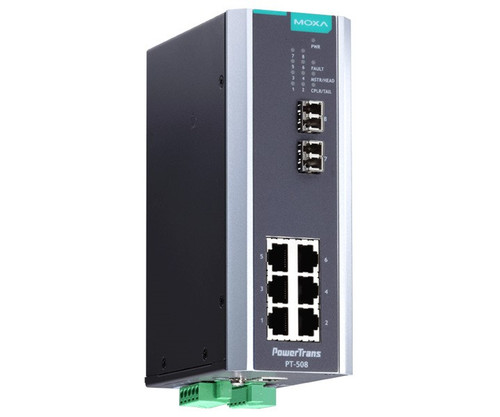

PT-508-MM-LC-HV Switch

Moxa

PT-508-MM-LC-HV Switch

Part #: PT-508-MM-LC-HV In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
$1,803.95
PT-508-MM-LC-HV
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/Moxa_PT-508_Series.pdf
hide_matrix:
True
in_stock:
False
sales_description:
Moxa, IEC 61850-3 Managed DIN-Rail Ethernet Switch, 6x 10/100Base-TX RJ45 Ports, 2x 100Base-FX Multi-mode LC Ports, (HV: 88 to 300VDC; 85 to 264VAC), -40 to 85°C Operating Temperature.
parent_sku:
PT-508-MM-LC-HV
facet_certification:
Substation
facet_form_factor:
Fixed
facet_management:
Managed - Layer 2
facet_mounting:
DIN-Rail
facet_port_count:
7 to 12
facet_port_speed:
10/100
facet_port_types:
LC
facet_port_types:
Multimode
facet_port_types:
RJ45
facet_power_considerations:
High Voltage (Typically 110-240 VAC or 110-250 VDC)
facet_temperature_range:
Extended
facet_temperature_range:
Standard
Adding… The item has been added
Commonly Purchased with:
DINSpace BRKT-19DR-5U-CM Rackmount DIN-Rail Adapter
$300.00
RJ45 CAT 5e Patch Cable - Unshielded
$3.15
See Options

Details

Moxa, IEC 61850-3 Managed DIN-Rail Ethernet Switch, 6x 10/100Base-TX RJ45 Ports, 2x 100Base-FX Multi-mode LC Ports, (HV: 88 to 300VDC; 85 to 264VAC), -40 to 85°C Operating Temperature.

The PowerTrans PT-508 Series is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-508’s optical fiber Fast Ethernet backbone, redundant ring, redundant power inputs (24 VDC or 48 VDC), and isolated power inputs (24 VDC, 48 VDC, or 110/220 VDC/VAC) increase the reliability of your communications and save on cabling/wiring costs. In addition, the DIN-rail and wall-mounting design of the PT-508 switches simplify network planning, and allows greater flexibility by letting you install up to 8 Fast Ethernet ports for power distribution applications.

Features & Benefits

  •  IEC 61850-3 and IEEE 1613 compliant
  •  Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
  •  Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  •  Isolated universal 24 VDC or 48 VDC redundant power inputs
  •  Wide 110/220 VDC/VAC power supply range
  •  Modbus TCP, LLDP, SNMP Inform, QoS, IGMP snooping, VLAN, IEEE 802.1X, HTTPS, SNMPv3, and SSH supported
  •  -40 to 85°C operating temperature range
