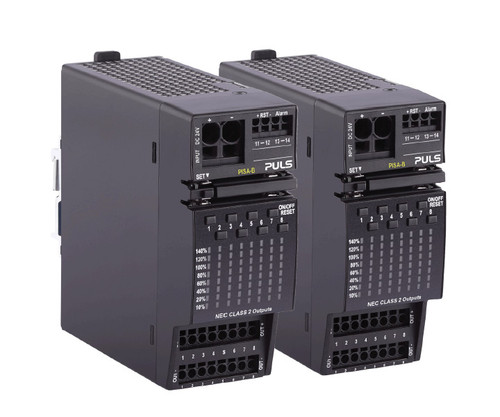

PISA-B-8CL2-B4 Circuit Breaker

Puls Electronic Circuit Breaker, 19.2- 30VDC Input, 30A DC Output, 24VDC Output, (8) x Output Channels @ 3.75A per Channel, NEC Class 2 , Digital Coded Alarm Signal.

The PISA-B devices are DIN rail mountable eight channel protection modules with integrated electronic fuses for 24V systems. They distribute the current from one large power source to eight NEC Class 2 output circuits, which results in reduced fire safety efforts and easier regulatory testing as well as approval processes for the end equipment. Channel 1 and 2 are optimized for loads with large input capacitances. Connect such loads to these channels to avoid false tripping or unexpected switchoff such loads. The PISA-B-8CL2-B1 is equipped with a common tripping signaling relay contact that reports tripped channels, while the PISA-B-8CL2-B4 has a digital coded signal output built in for this function. All PISA-B devices are equipped with push-in terminals, which are optimized for automated wiring. The mechanically robust housing is made of a high grade, reinforced molded material on the front and of an aluminum body, which permits surrounding temperatures up to +70 deg. C.

Features and Benefits

• Eight Current Controlled Outputs
• NEC Class 2 Compliant
• Adaptive Voltage-dependent Current Limitation for Maximal Output Power According to NEC Class 2
• Selective Tripping of Overloaded Channels
• Compatible even with large Capacitive Loads
• Output Currents Displayed Live on LED Matrix
• Remote Reset or Reset via Pushbuttons
• Common Signaling Relay Contact for Tripped Channels (PISA-B-8CL2-B1)
• Digital Coded Signal Output for Tripped Channels (PISA-B-8CL2-B4)
• Parameter Settings can be Locked by PIN-Code
• ON/OFF Feature for Each Individual Output
• Easy Wiring - Distribution Terminals for Negative Pole
