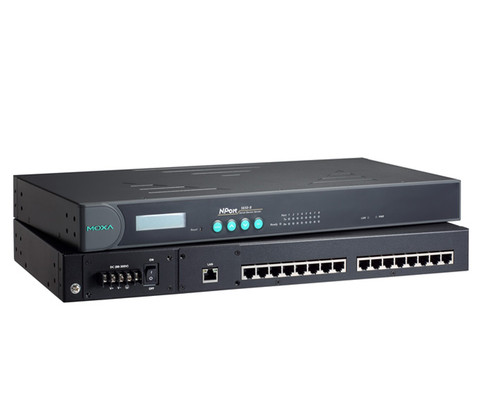

NPort 5600 Device Servers
NPort 5600 Device Servers
NPort 5600 Device Servers

Moxa

NPort 5600 Device Servers

Part #: NPort 5600 Rackmount Series In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $908.64
NPort 5600 Rackmount Series
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/NPort_5600_Rackmount_Series.pdf
hide_matrix:
False
sales_description:
Moxa NPort 5600 Series (5610, 5650, 5630) Rackmount 8 and 16 Port Device Servers. (Please Specify Model Number.)
parent_sku:
NPort 5600 Rackmount Series
facet_application:
Commercial
facet_mounting:
Rackmount
facet_port_count:
8 to 32
facet_protocol_support:
RS-232/422/485
facet_temperature_range:
Standard
Adding… The item has been added
Commonly Purchased with:
Moxa NPort 5600-8-DT Device Servers
$859.97
See Options

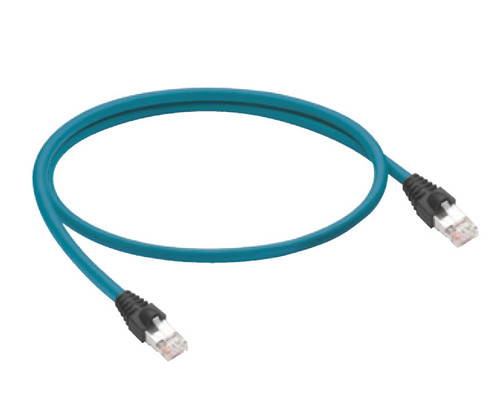

Hirschmann RJ45/M12 CAT 5e Patch Cable - Unshielded
$27.11
See Options

Models

Product ID Description Price
NPort 5610-16-48V Moxa 16-port Device Server, 10/100M Ethernet, RS-232, RJ-45, 15KV ESD, +-48 VDC. $1,452.13
NPort 5610-8 Moxa 8-port Device Server, 10/100M Ethernet, RS-232, RJ-45, 15KV ESD, 100V or 240V. $908.64
NPort 5610-8-48V Moxa 8-port Device Server, 10/100M Ethernet, RS-232, RJ-45, 15KV ESD, +-48 VDC. $1,102.09
NPort 5630-16 Moxa 16-port Device Server, 10/100M Ethernet, RS-422/485, RJ-45, 15KV ESD, 100V or 240V. $1,277.11
NPort 5630-8 Moxa 8-port rackmount Device Server, 10/100M Ethernet, RS-422/485 RJ-45, 100-240VAC . $962.44
NPort 5650-16-M-SC Moxa 16-port Device Server, 10/100M Ethernet, RS-232/422/485, RJ-45, 100M Multimode Fiber, SC Connector, 15KV ESD, 100V or 240V. $1,689.11
NPort 5650-16-S-SC Moxa 16-port Device Server, 10/100M Ethernet, RS-232/422/485, RJ-45, 100M Singlemode Fiber, SC Connector, 15KV ESD, 100V or 240V. $1,985.34
NPort 5650-16-T Moxa 16-port Device Server, 10/100M Ethernet, RS-232/422/485, RJ-45, 15KV ESD, 100V or 240V, -40-75 deg. C. $1,976.88
NPort 5650-8-M-SC Moxa 8-port Device Server, 10/100M Ethernet, RS-232/422/485, RJ-45, 100M Multimode Fiber, SC Connector, 15KV ESD, 100V or 240V. $1,250.21
NPort 5650-8-S-SC Moxa 8-port Device Server, 10/100M Ethernet, RS-232/422/485, RJ-45, 100M Singlemode Fiber, SC Connector, 15KV ESD, 100V or 240V. $1,411.62
NPort 5650-8-T Moxa 8-port Device Server, 10/100M Ethernet, RS-232/422/485, RJ-45, 15KV ESD, 100V or 240V, -40-75 deg. C. $1,559.74
NPort 5650-8 Moxa 8-port Device Server, 10/100M Ethernet, RS-232/422/485, RJ-45, 15KV ESD, 100V or 240V. $1,142.60
NPort 5650-16 Moxa 16-port Device Server, 10/100M Ethernet, RS-232/422/485, RJ-45, 15KV ESD, 100V or 240V. $1,452.13
NPort 5610-16 Moxa 16-port Device Server, 10/100M Ethernet, RS-232, RJ-45, 15KV ESD, 100V or 240V. $1,142.60

Details

Moxa NPort 5600 Series (5610, 5650, 5630) Rackmount 8 and 16 Port Device Servers. (Please Specify Model Number.)

With the NPort® 5600 rackmount series, you not only protect your current hardware investment, but also allow for future network expansion by centralizing the management of your serial devices and distributing management hosts over the network.

Network Readiness for up to 16 Serial Devices
Only basic configuration is needed with the NPort® 5600 to connect up to 16 serial devices to an Ethernet network.

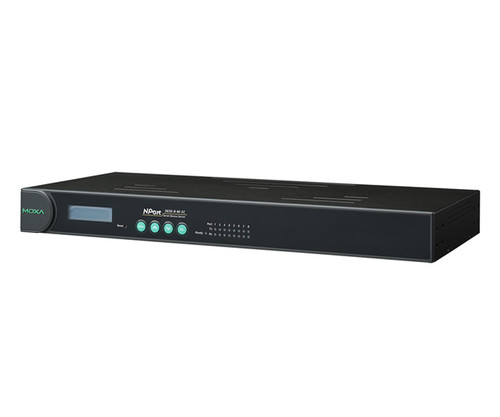

19-inch Rackmount Device Server
NPort® 5600 device servers come with Tx/Rx LEDs for the serial ports on the front panel, and 8 or 16 RJ45 serial port connectors on the rear panel. This makes the NPort® 5600 device servers suitable for standard 19-inch rack mounting, allowing you to simplify operational, maintenance, and administrative tasks.

Real COM/TTY Ports
Real COM/TTY drivers are provided to make the serial ports on the NPort® 5600 recognizable as Real COM ports by Windows, or Real TTY ports by Linux. In addition to supporting basic data transmission and reception, the NPort® drivers also support the RTS, CTS, DTR, DSR, and DCD control signals.

LED Indicators to Ease Your Maintenance Tasks
The System LED, serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks, and help engineers analyze problems in the field. The LEDs not only indicate current system and network status, but also help field engineers monitor the status of attached serial devices.

Adjustable Termination and Pull High/Low Resistors
When using termination resistors to prevent serial signal reflection, it is important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible for all environments, the NPort® 5600 has DIP switches on the bottom panel for setting the termination and pull high/low resistor values.

Features

  • 8 or 16 serial ports supporting RS-232/422/485
  • Standard 19-inch rackmount size
  • 10/100M auto-sensing Ethernet
  • Built-in 15 KV ESD protection for all serial signals
  • Easy IP address configuration with LCD panel (Not include wide temperature models)
  • Choice of configuration methods: Web console, Telnet console, and Windows utility
  • Versatile socket operation modes, including TCP Server, TCP Client, UDP, and Real COM
  • SNMP MIB-II for network management

Documentation

Spec Sheet
