NPort 5200 Series

Moxa

NPort 5200 Series

Part #: NPort 5200 Series In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $235.77
NPort 5200 Series
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/NPort_5200_Series.pdf
hide_matrix:
False
sales_description:
Moxa NPort 5200 Series 2-port Serial Device Server, Includes Power Supply Except for Extended Temperature Versions. (Please Specify Model Number).
parent_sku:
NPort 5200 Series
facet_application:
Commercial
facet_mounting:
Desktop
facet_port_count:
1 to 4
facet_protocol_support:
RS-232/422/485
facet_temperature_range:
Extended
facet_temperature_range:
Standard
Adding… The item has been added
Commonly Purchased with:

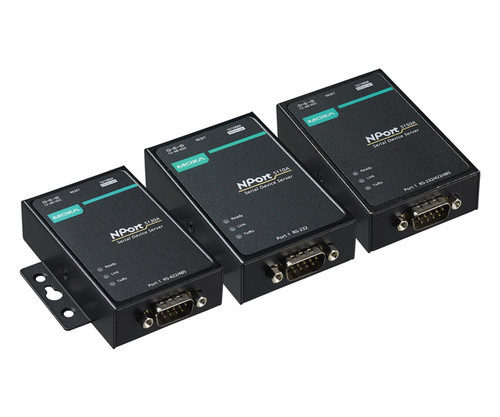

Moxa NPort 5100A Serial Device Servers
$181.97
See Options
Moxa NPort 5200A Series
$262.68
See Options

Models

Product ID Description Price
NPort 5210 w/ adapter Moxa 2-Port RS-232 Serial Device Server, 0 to 55 deg. C, 12-48 VDC Powered (Includes AC Power Supply). $244.24
NPort 5210-T Moxa 2-Port RS-232 Serial Device Server, -40 to +75 deg. C, 12-48 VDC Powered (Does Not Include Power Supply). $383.89
NPort 5230 w/ adapter Moxa 1-Port RS-232 / 1-Port RS-422/485 Serial Device Server, 0 to 55 deg. C, 12-48 VDC Powered (Includes AC Power Supply). $276.28
NPort 5230-T Moxa 1-Port RS-232 / 1-Port RS-422/485 Serial Device Server, -40 to +75 deg. C, 12-48 VDC Powered (Does Not Include Power Supply). $383.89
NPort 5232 w/ adapter Moxa 2-Port RS-422/485 Serial Device Server, 0 to 55 deg. C, 12-48 VDC Powered (Includes AC Power Supply). $276.28
NPort 5232-T Moxa 2-Port RS-422/485 Serial Device Server, -40 to +75 deg. C, 12-48 VDC Powered (Does Not Include Power Supply). $410.79
NPort 5232I w/ adapter Moxa 2-Port RS-422/485 Serial Device Server w/ 2kV Isolation, 0 to 55 deg. C, 12-48 VDC Powered (Includes AC Power Supply). $356.99
NPort 5232I-T Moxa 2-Port RS-422/485 Serial Device Server w/ 2kV Isolation, -40 to +75 deg. C, 12-48 VDC Powered (Does Not Include Power Supply). $478.20
NPort 5210 Moxa 2-Port RS-232 Serial Device Server, 0 to 55 deg. C, 12-48 VDC Powered (Does Not Include Power Supply). $235.77
NPort 5230 Moxa 1-Port RS-232 / 1-Port RS-422/485 Serial Device Server, 0 to 55 deg. C, 12-48 VDC Powered (Does Not Include Power Supply). $267.82
NPort 5232 Moxa 2-Port RS-422/485 Serial Device Server, 0 to 55 deg. C, 12-48 VDC Powered (Does Not Include Power Supply). $267.82
NPort 5232I Moxa 2-Port RS-422/485 Serial Device Server w/ 2kV Isolation, 0 to 55 deg. C, 12-48 VDC Powered (Does Not Include Power Supply). $348.52

Details

Moxa NPort 5200 Series 2-port Serial Device Server, Includes Power Supply Except for Extended Temperature Versions. (Please Specify Model Number).

Standard TCP/IP Protocols and Choice of Operation Modes
NPort 5200 device servers can operate in TCP Server, TCP Client, or UDP operation mode, ensuring compatibility with software based on a standard network API (Winsock, BSD Sockets).

Real COM/TTY Drivers for Existing Software
With the Real COM/TTY drivers that are provided with each NPort, software designed for communication with COM/TTY ports can be instantly and seamlessly integrated into a TCP/IP network. This is a excellent " no fuss" way to preserve your software investment and enjoy the benefits of networking your serial devices.

Control Remote Serial Devices with TCP/IP or Traditional COM/TTY Port
By specifying the NPort 5200's IP address and port number, a network sockets API can obtain access to the attached serial device over the network, from any host computer that supports TCP/IP. For legacy Windows or Linux software that is COM or TTY-based, Moxa's COM/TTY drivers provide a seamless way of operating over the network.

Features and Benefits

  • Compact design for easy installation
  • Socket modes: TCP server/TCP client/UDP
  • Easy-to-use Windows utility for configuring multiple device servers
  • Supports 10/100M Ethernet
  • Patented ADDC (Automatic Data Direction Control) for 2-wire and 4-wire RS-485
  • SNMP MIB-II for network management

Documentation

Spec Sheet
