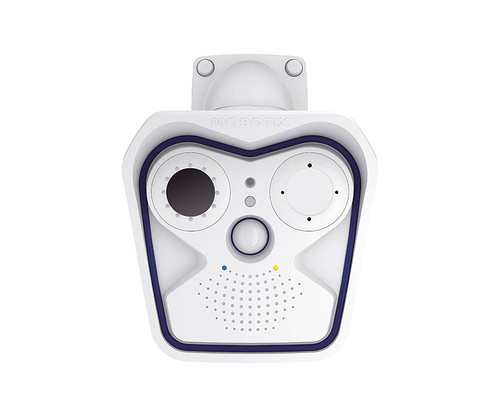

MX-M16TB Thermal Series

MOBOTIX M16TB Thermal Weatherproof IP Camera with MXBUS Includes (1) Thermal Sensor and (1) Slot For Optical Sensor Module (Sold Separately). (Please Specify Options.)

NOTE: If you are interested in an application to read skin temperature, reference MOBOTIX part number MX-M16TB-EST.

MOBOTIX M16B Thermal or M16B Thermal TR

The intelligent video system with an integrated high-performance thermal image sensor takes full advantage of the M16B camera design. Thanks to the two directly adjacent lenses, there is also a thermal overlay function with image overlay (thermal and optical) to pinpoint the exact location of hotspots like smoldering fires in a visible image. The MOBOTIX TR cameras feature a calibrated thermal image sensor. Thermal radiation measurements made across the entire image area can be used to trigger an event based on the temperature increasing above or decreasing below an individually set trigger level (camera alarm, network message, activation of a signal output etc.).

Features & Benefits

• Mx6 system platform 2nd generation, with MxBus, H.264 and ONVIF compatibility
• Fixed premium thermal image sensor with an NETD of 50 mK
• Thermal Radiometry For measurable added value: calibrated thermal image sensor
• Thermal field of view: 45, 25 or 17 degrees.
• Additional image sensor module options
• Recording on an internal MicroSD card (4GB as standard)
• Integrated microphone and speaker
• MxActivitySensor can also be used in total darkness
• PoE thermal camera with a power consumption of < 10 W

MxBus Smart Functional Extension Solution For MOBOTIX IoT Systems

Originally developed for the MOBOTIX IP video door station, the encrypted (128 bit) MxBus system represents the uncomplicated, easily expandable and cost-effective communication system for numerous peripherals of MOBOTIX IoT cameras and is a core component in the MOBOTIX decentralized system.

With MxBus, IO-functions for smart homes and alarm systems can be easily extended to the cameras or the IP door station. MOBOTIX offers IO-, GPS-, temperature- and other accessories as well as radar-based proximity sensors via MxBus.

MxBus is a two-wire cable system developed by MOBOTIX that is encrypted against cyberattacks and expands camera functions by including practical additional MOBOTIX modules such as the MX-GPS-Box (a reliable time server for a complete video system).
