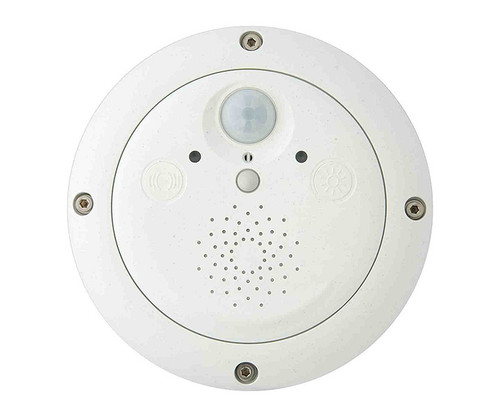

MX-ExtIO Module

MOBOTIX MX-ExtIO Weatherproof Extension With Microphone / Speaker, Motion Detection, Temperature Sensor, PoE or USB Powered (USB Recommended And Requires MX-CBL-MU-EN-EN-PG-2 Cable) (Specially Discounted Pricing While Supplies Last)

With its new ExtIO module, MOBOTIX leads the way to completely new technology. The ExtIO can be connected to a camera either directly via USB or through a network and extends the MOBOTIX camera to a high-performance audio unit with microphone and speaker, infrared motion detector, temperature sensor and additional switch in-/outputs. Door and gate intercom systems are easy to implement using the two illuminated buttons.

Features

• Extension for MOBOTIX cameras
• Microphone/speaker
• Infrared motion detector, temperature sensor Switch in-/outputs

Specifications

• Interfaces: USB, Ethernet 10/100 Mbps (from Q3/2008)
• Audio: Microphone and speaker, integrated amplifier and equalizer
• Input contacts:
  • 2 signal inputs (galvanic ally separated)
  • Safety extra-low voltage SELV (AC/DC)
  • Switching voltage of ExtIO provided (also external)
• Output contacts:
  • 2 signal outputs (potential-free)
  • Safety extra-low voltage SELV (AC/DC), up to 100 mA)
• Sensors:
  • Passive IR motion detector (PIR)
• Temperature sensor for room temperature
• Dawn sensor
• IR remote sensor
• 2 illuminated buttons
• Status display: 2 status LEDs
• Certificates: EMV (DIN 61000), FCC Part 15 for Class B Devices
• Operating conditions: IP65 (DIN EN 60529)
• Operating temperature: -30 ° to +60 ° C (-22 F to + 140 F) (DIN EN 50125)
• Power supply: USB, Power over Ethernet (PoE)
• Power input: typ. 1 W
