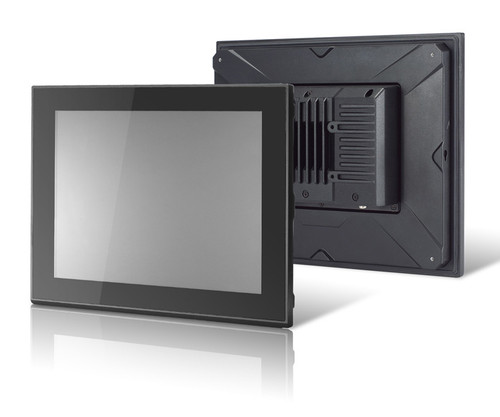

MPC-2120 Series Computers

Moxa

MPC-2120 Series Computers

Part #: MPC-2120 Series In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $2,113.34
MPC-2120 Series
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/moxa-mpc-2120-computers.pdf
pdf_2_name:
User Manual
pdf_2_url:
pdfs/moxa-mpc-2120-computers-manual.pdf
hide_matrix:
False
sales_description:
Moxa MPC-2120 Series 12-Inch Industrial Fanless Panel Computers with Class 1 Division 2, ATEX Zone 2, and IECEx Certifications. (Please Specify Model.)
parent_sku:
MPC-2120 Series
facet_certification:
Hazardous Location
facet_certification:
Marine
facet_features:
Ethernet
facet_mounting:
Direct Mount
facet_temperature_range:
Extended
facet_temperature_range:
Standard
facet_type:
Panel PC With Monitor
Adding… The item has been added
Commonly Purchased with:

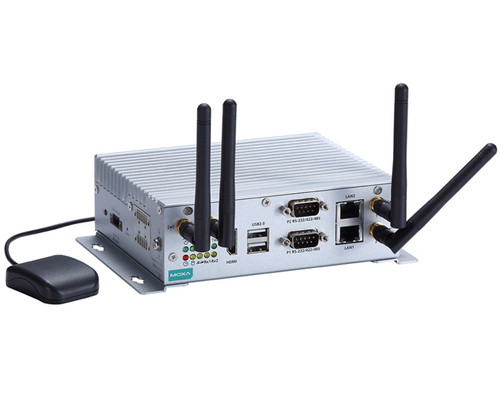

Moxa V2201 Series Computers
$1,307.69
See Options

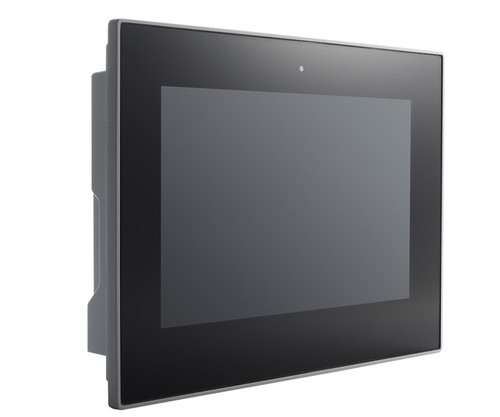

Moxa EXPC-F2120W Series Computers
$4,147.50
See Options

Models

Product ID Description Price
MPC-2120-E2-LB-T Moxa MPC-2120 Series 12-Inch Industrial Panel Computer, E3826 CPU, 4GB RAM, 500 nits, 4:3 aspect ratio, IP66 in front, touch. $2,113.34
MPC-2120-E2-LB-T-W7E Moxa MPC-2120 Series 12-Inch Industrial Panel Computer, E3826 CPU, 4GB RAM, 32GB CFast, W7E OS, 500 nits, 4:3 aspect ratio, IP66 in front, touch. $2,657.92
MPC-2120-E2-T Moxa MPC-2120 Series 12-Inch Industrial Panel Computer, E3826 CPU, 4GB RAM, 1000 nits, 16:9 aspect ratio, IP66 in front, touch. $2,463.58
MPC-2120-E2-T-W7E Moxa MPC-2120 Series 12-Inch Industrial Panel Computer, E3826 CPU, 4GB RAM, 32GB CFast, W7E OS, 1000 nits, 16:9 aspect ratio, IP66 in front, touch. $2,951.34
MPC-2120-E4-LB-T Moxa MPC-2120 Series 12-Inch Industrial Panel Computer, E3845 CPU, 4GB RAM, 500 nits, 16:9 aspect ratio, IP66 in front, touch. $2,281.76
MPC-2120-E4-LB-T-W7E Moxa MPC-2120 Series 12-Inch Industrial Panel Computer, E3845 CPU, 4GB RAM, 32GB CFast, W7E OS, 500 nits, 16:9 aspect ratio, IP66 in front, touch. $2,847.61
MPC-2120-E4-T-W7E Moxa MPC-2120 Series 12-Inch Industrial Panel Computer, E3845 CPU, 4GB RAM, 32GB CFast, W7E OS, 1000 nits, 16:9 aspect ratio, IP66 in front, touch. $3,188.52

Details

Moxa MPC-2120 Series 12-Inch Industrial Fanless Panel Computers with Class 1 Division 2, ATEX Zone 2, and IECEx Certifications. (Please Specify Model.)

The MPC-2120 12-inch panel computers with E3800 Series Intel Atom® processor deliver a reliable, durable, and versatile platform for use in industrial environments. With two software selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports, the MPC-2120 panel computers support a wide variety of serial interfaces as well as high-speed IT communications, all with native network redundancy.

The MPC-2120 Series panel computers are designed with a wide, -40 to 70 deg. C temperature range, and come with a fanless, streamlined enclosure designed for highly efficient heat dissipation, making this one of the most reliable industrial platforms available for harsh, hot, outdoor environments like oil and gas fields and drilling platforms. The MPC-2120 also features a 1000-nit LCD panel offering a sunlight-readable, projected-capacitive, multi-touch screen, providing an excellent user experience for outdoor applications.

Features and Benefits

  • 12-inch panel computer
  • Intel Atom® processor: E3845 1.91 GHz or E3826 1.46 GHz
  • -40 to 70 deg. C wide-temperature design, no fan or heater
  • 1000-nit sunlight-readable LCD
  • Class 1 Division 2, ATEX Zone 2, and IECEx certified
  • Wide-range 10 to 36 VDC power input
  • DNV GL certified for marine applications

Documentation

Spec Sheet User Manual
