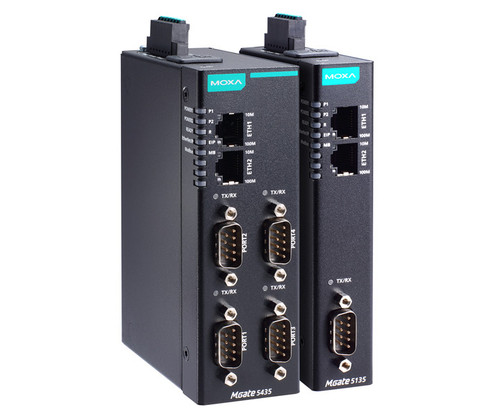

MGate 5135/5435 Series Device Servers

Moxa MGate 5135/5435 Series 1 or 4-port Modbus RTU/ASCII/TCP-to-EtherNet/IP Gateways. (Please Specify Ports and Temperature Range.)

Easy Configuration
The MGate 5135/5435 gateways are provided with a web console to make configuration easy without having to install an extra utility. In addition, HTTPS encryption of communication ensures higher network security. In most data-acquisition applications, configuration of devices with Modbus commands can be time-consuming and increase costs. The MGate 5135/5435 gateways provide offline configuration via a CSV file to help complete the Modbus settings quickly. The MGate gateways also provide software-configurable pull high/low and termination resistor settings for RS-485 2-wire to reduce efforts and the need to open the chassis.

Easy Troubleshooting
The MGate 5135/5435 gateways provide a variety of maintenance functions to reduce troubleshooting time and cost, including LED indicators, protocol diagnostics, traffic monitor, and tag view. These tools help you capture and check data to easily identify the root cause of issues, especially during the installation stage. The MGate gateways also come with status monitoring and fault protection functions. The status monitoring function notifies a PLC/DCS/SCADA system when a Modbus device gets disconnected or does not respond, in which case the process PLC/DCS gets the status of each end device and then issues alarms to notify operators. The fault protection function executes actions pre-defined by the user when a host gets disconnected to prevent the end devices from going offline for long periods of time..
