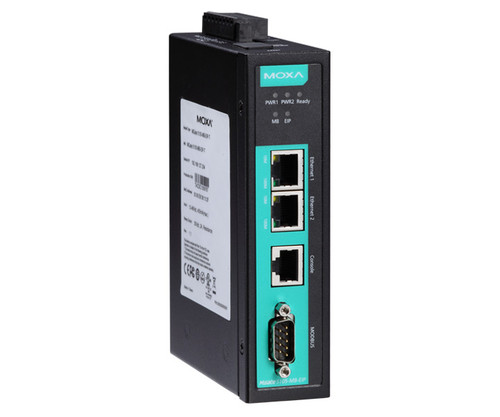

MGate 5105-MB-EIP Gateway

Moxa MGate Industrial Modbus to Modbus TCP or Ethernet/IP Gateway, 1 x RS-232/422/485, DB9 Port, 2 x 10/100Base-TX RJ45 Ports, 12-48 VDC Powered, 0 to 60°C, ATEX, Class I Division 2, IECEx Rated.

The MGate 5105-MB-EIP is an industrial Ethernet gateway for Modbus RTU/ASCII/TCP and EtherNet/IP network communication. To integrate existing Modbus devices onto an EtherNet/IP network, use the MGate 5105-MB-EIP as a Modbus master or slave to collect data and exchange data with EtherNet/IP devices. The latest exchange data will be stored in the gateway as well. The gateway converts stored Modbus data into EtherNet/IP packets so the EtherNet/IP scanner can control or monitor Modbus devices.

Effortless Configuration and Troubleshooting via Web Console
The MGate 5105-MB-EIP also provides a web console to make configuration easy without having to install an extra utility. Simply log in as an administrator to access all settings, or as a general user with read-only permission. Besides configuring basic protocol settings, you can use the web console to monitor I/O data values and transfers. In particular, I/O Data Mapping shows data addresses for both protocols in the gateway’s memory and I/O Data View allows you to track data values for online nodes. Moreover, diagnostics and communication analysis for each protocol can also provide helpful information for troubleshooting.

Features & Benefits

• Support for both EtherNet/IP adapter and scanner
• Effortless configuration via web or Windows utility
• Complete packet analysis and diagnosis information for maintenance
• Easy I/O data maintenance via web interface
• microSD card for configuration and system log backup
• Modbus port with 2 kV built-in isolation protection
• Built-in Ethernet cascading for easy wiring
• Supports Moxa's MXview industrial network management software via the MXview Plug-in
• Control Engineering 2015 Engineers' Choice Award
