MA322.A.001 5G/4G Antenna (2-in1)

Taoglas 2-in-1, 2 x 5G/4G MIMO Adhesive/Magnetic Mount Puck Conmet Series Antenna with 2 Meter Cabling with braiding (.da) and SMA (Male) Connector, Black.

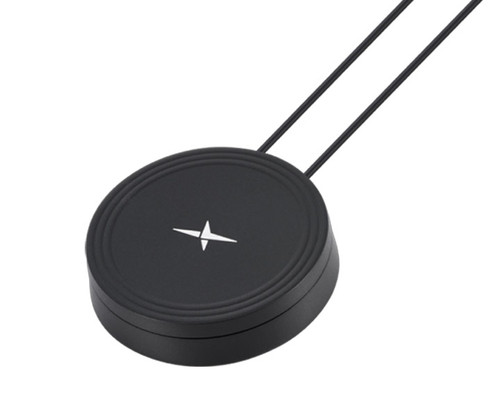

The Taoglas Comet MA322 is a low profile, puck style, adhesive/magnetic mount antenna. The MA322 contains two 5G/4G high performance antennas for use in MIMO cellular systems. Through innovative antenna design techniques, it covers all worldwide cellular frequencies from 600MHz to 6GHz, with stable gain and high efficiency, normally difficult to achieve in smaller antennas.

The Comet series has been designed to be compact and low profile, measuring just 80x18mm, to be utilized in application areas where other larger and taller antennas are not appropriate. The Comet has been designed with an option for either magnetic or adhesive mounting. This allows it to be utilized and installed in applications where destructive installations are not allowed, such as drilling mounting holes to secure a permanent antenna on leased vehicles.

Typical Applications Include:

• Telematics
• Gateways and Routers
• Digital Signage
• First Responder and Emergency Services

The robust ASA magnetic mount enclosure is designed to be waterproof rated to IP67 and can be mounted internally or externally on devices or vehicles. The Comet comes with a separate 3M foam high performance pad for adhesive mount application. Both MIMO 1 and 2 connections utilize 2m TGC-1.5DS coaxial cable with SMA(M) connectors as standard. Customized cable and connector versions are also available.
