LG-IN2902 Meglodon 8 x 4G/5G Antenna

Panorama Antennas, LG-IN2902, 11-in-1 Megalodon Antenna (8 x 8 MIMO 4G/5G LTE plus 2 x 2 MIMO Wi-Fi plus GPS/GNSS), 617-7125 MHz, Panel/Threaded Bolt Mount, SMA-Male and RP-SMA-Male Connectors, 5 Meter Cable, Black.

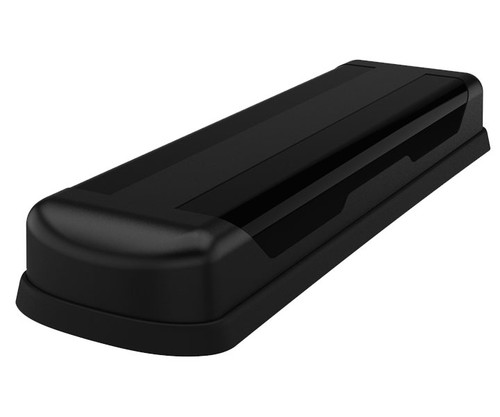

L[X]M[X]M8[X]-6-60 | Megalodon® 8x 4G/5G Low Profile Antenna

The industry leading Megalodon® range has been developed to provide 2x 4x4 MiMo 4G/5G antenna systems covering 617-960/1427-6000MHz within a robust low profile package. Covering global cellular bands for future-proof performance, the antenna provides effective functionality for 2x 4G Cat 18/20 and/or 5G modems.

The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant low-loss CS30 cables (Compliant to UN ECE R118) and a halogen free, flame retardant radome, the antenna is suitable for many environments and applications, including public safety and transportation.

The LGM variants have an integrated GPS/GNSS module supporting either L1 only  or L1/L5 frequencies.  This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference.

The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection.

Features and Benefits

• 8x 4G/5G elements
• Up to 8x8 MiMo Dual Band WiFi 6e / 7
• Up to 2 GPS/GNSS L1 or L1/L5 bands
• Meets IK10 and IP69K
