LG-IN2445 Mako series 4x4 MiMo 4G/5G Antenna
LG-IN2445 Mako series 4x4 MiMo 4G/5G Antenna

Panorama Antennas

LG-IN2445 Mako series 4x4 MiMo 4G/5G Antenna

Part #: LG-IN2445 In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
$554.01
LG-IN2445
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/Panorama-LXMXM4X-6-60-24-58-Antenna.pdf
hide_matrix:
True
in_stock:
False
sales_description:
Panorama Antennas, LG-IN2445, 7-in-1 Mako Dome Antenna (4 x 4 MIMO 4G/5G LTE plus 2 x 2 MIMO Wi-Fi plus GPS/GNSS), 617-7125 MHz, Panel/Threaded Bolt Mount, SMA-Male and RP-SMA-Male Connectors, 5 Meter Cable, Black.
parent_sku:
LG-IN2445
facet_accessories:
Cabling
facet_application:
Vehicle
facet_connector:
RP-SMA
facet_connector:
SMA Male
facet_frequency_band:
4G/LTE
facet_frequency_band:
5G
facet_frequency_band:
900 MHz
facet_frequency_band:
GPS
facet_frequency_band:
Wi-Fi (2.4 GHz / 5 GHz)
facet_type:
Omni-Directional
Adding… The item has been added
Commonly Purchased with:
Panorama Antennas DW-IN2713 4x4 MiMo 4G/5G Antenna
$644.30

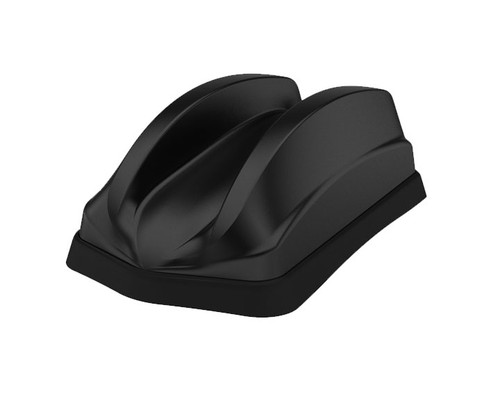

Panorama Antennas GP-IN2680 Dual Sharkee series 4x4 MiMo 4G/5G Antenna
$581.71

Details

Panorama Antennas, LG-IN2445, 7-in-1 Mako Dome Antenna (4 x 4 MIMO 4G/5G LTE plus 2 x 2 MIMO Wi-Fi plus GPS/GNSS), 617-7125 MHz, Panel/Threaded Bolt Mount, SMA-Male and RP-SMA-Male Connectors, 5 Meter Cable, Black.

L[G]M[H]M4[B]-6-60[-24-58] Mako® | 4x4 MiMo 4G/5G, up to 6x6 MiMo WiFi + GPS/GNSS Vehicle Antenna

The Mako® 5G dome is a range of high-performance 4x4 MiMo antennas covering 617-960/1710-6000MHz with optional GPS/GNSS and optional 2x2, 3x3 or 4x4, or 6x6 MiMo/Diversity at 2.4/5.0/7.2GHz.

The Mako® 5G dome consists of up to 11 elements; four isolated high-performance antenna elements covering 617-960/1710-6000MHz offer MiMo/Diversity at cellular/LTE frequencies, up to 6 optional dual band elements covering 2.4 & 5.0/7.2GHz support MiMo/Diversity operation for WiFi and optional high-performance GPS/GNSS antenna with an integrated 26dB gain LNA and high-quality filtering offers unparalleled positioning accuracy. None of the antennas in this range require a metallic ground plane, and all maintain a high level of performance even when mounted on non-metallic surfaces.

Although the LTE elements are designed for 4x4 MiMo operation, it is possible to utilize these as 2 pairs of 2x2 MiMo for a router that has 2 SIMS (radio) in a failover configuration (i.e. only one SIM active at any time). As this configuration is using only 2 out of the 4 antennas for a single SIM, the network coverage should be checked to ensure that this use is suitable.

Guidance on the correct connection of the LTE antennas is provided in the installation instructions. Please Note: This antenna is not intended for use with a router that has 2 SIMS to provide concurrent or aggregated data operation, as there is not sufficient isolation between the MiMo pairs.

Features and Benefits

  • Designed for latest generation LTE Cat 18/20 routers and devices
  • Low profile antenna with up to 11 functions in 1
  • 4x4 MiMo 4G/5G LTE cellular, Optional GPS/GNSS & optional MiMo 2.4/7.2GHz in one housing
  • Kits with extension cables available for a range of LTE routers
  • Flame retardant cables compliant to UNECE R118
  • Pre-terminated antenna connectors fitted as standard
  • Cable flags attached for easy cable identification and installation
  • Extension cable available upon request

Documentation

Spec Sheet
