ioThinx 4500 Series Expansion Modules
ioThinx 4500 Series Expansion Modules

Moxa

ioThinx 4500 Series Expansion Modules

Part #: ioThinx 4500 Series Modules In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $101.26
ioThinx 4500 Series Modules
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/moxa-iothinx-4500.pdf
hide_matrix:
False
sales_description:
Moxa ioThinx 4500 Series (45MR) Expansion Modules, Available With DI/Os, AIs, Relays, RTDs, and Other I/O Types. (Please Specify Module.)
parent_sku:
ioThinx 4500 Series Modules
facet_form_factor:
Modular
facet_input_output_count:
9 to 16
facet_input_output_count:
Up to 8
facet_input_output_type:
Analog Only
facet_input_output_type:
Digital Only
facet_input_output_type:
Digital/Analog
facet_input_output_type:
Relay
facet_mounting:
DIN-Rail
facet_temperature_range:
Extended
facet_temperature_range:
Standard
Adding… The item has been added
Commonly Purchased with:

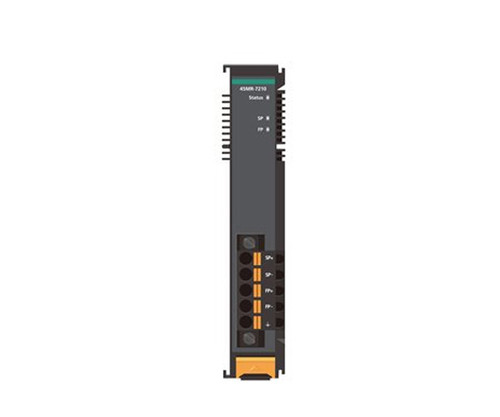

Moxa ioThinx 4500 Series Power Modules
$160.33
See Options

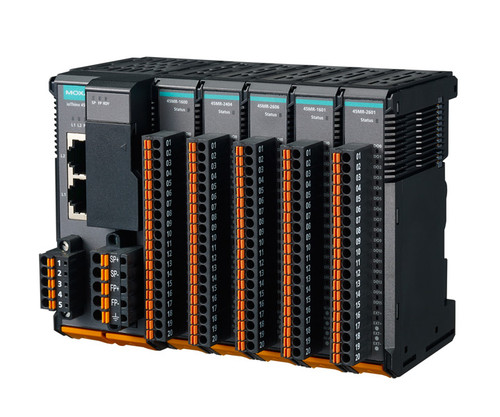

Moxa ioThinx 4510 Series Remote I/O
$349.75
See Options

Models

Product ID Description Price
45MR-1600 Moxa ioThinx 4500 Series (45MR) Expansion Module, 16 x DI, PNP 12/24VDC, Current Draw = 59.4 mA, -20 to +60 deg C. $151.89
45MR-1600-T Moxa ioThinx 4500 Series (45MR) Expansion Module, 16 x DI, PNP 12/24VDC, Current Draw = 59.4 mA, -40 to +75 deg C. $207.17
45MR-1601 Moxa ioThinx 4500 Series (45MR) Expansion Module, 16 x DI, NPN 12/24VDC, Current Draw = 59.4 mA, -20 to +60 deg C. $151.89
45MR-1601-T Moxa ioThinx 4500 Series (45MR) Expansion Module, 16 x DI, NPN 12/24VDC, Current Draw = 59.4 mA, -40 to +75 deg C. $207.17
45MR-2404 Moxa ioThinx 4500 Series (45MR) Expansion Module, 4 x Relay, Form A, Current Draw = 44.0 mA, -20 to +60 deg C. $137.63
45MR-2404-T Moxa ioThinx 4500 Series (45MR) Expansion Module, 4 x Relay, Form A, Current Draw = 44.0 mA, -40 to +75 deg C. $193.21
45MR-2600 Moxa ioThinx 4500 Series (45MR) Expansion Module, 16 x DO, Sink 12/24VDC, Current Draw = 57.2 mA, -20 to +60 deg C. $163.53
45MR-2600-T Moxa ioThinx 4500 Series (45MR) Expansion Module, 16 x DO, Sink 12/24VDC , Current Draw = 57.2 mA, -40 to +75 deg C. $221.43
45MR-2601 Moxa ioThinx 4500 Series (45MR) Expansion Module, 16 x DO, Source 12/24VDC, Current Draw = 63.8 mA, -20 to +60 deg C. $163.53
45MR-2601-T Moxa ioThinx 4500 Series (45MR) Expansion Module, 16 x DO, Source 12/24VDC, Current Draw = 63.8 mA, -40 to +75 deg C. $221.43
45MR-2606 Moxa ioThinx 4500 Series (45MR) Expansion Module, 8 x DI, PNP 12/24VDC, 8 x DO, Source 12/24VDC, Current Draw = 62.7 mA, -20 to +60 deg C. $171.97
45MR-2606-T Moxa ioThinx 4500 Series (45MR) Expansion Module, 8 x DI, PNP 12/24VDC, 8 x DO, Source 12/24VDC, Current Draw = 62.7 mA, -40 to +75 deg C. $224.05
45MR-3800 Moxa ioThinx 4500 Series (45MR) Expansion Module, 8 x AI, 0 to 20 mA/4 to 20 mA, Current Draw = 197.3 mA, -20 to +60 deg C. $366.34
45MR-3800-T Moxa ioThinx 4500 Series (45MR) Expansion Module, 8 x AI, 0 to 20 mA/4 to 20 mA, Current Draw = 197.3 mA, -40 to +75 deg C. $478.07
45MR-3810 Moxa ioThinx 4500 Series (45MR) Expansion Module, 8 x AI, -10 to 10 V/0 to 10 V, Current Draw = 187.0 mA, -20 to +60 deg C. $366.34
45MR-3810-T Moxa ioThinx 4500 Series (45MR) Expansion Module, 8 x AI, -10 to 10 V/0 to 10 V, Current Draw = 187.0 mA, -40 to +75 deg C. $478.07
45MR-6600 Moxa ioThinx 4500 Series (45MR) Expansion Module, 6 x RTD, Current Draw = 131.7 mA, -20 to +60 deg C. $345.97
45MR-6600-T Moxa ioThinx 4500 Series (45MR) Expansion Module, 6 x RTD, Current Draw = 131.7 mA, -40 to +75 deg C. $448.39
45MR-6810 Moxa ioThinx 4500 Series (45MR) Expansion Module, 8 x Thermocouple, Current Draw = 148.1 mA, -20 to +60 deg C. $345.97
45MR-6810-T Moxa ioThinx 4500 Series (45MR) Expansion Module, 8 x Thermocouple, Current Draw = 148.1 mA, -40 to +75 deg C. $448.39
45MR-7820 Moxa ioThinx 4500 Series (45MR) Power Distribution Block For Additional Wiring Terminals, -20 to +60 deg C. $101.26
45MR-7820-T Moxa ioThinx 4500 Series (45MR) Power Distribution Block For Additional Wiring Terminals, -40 to +75 deg C. $128.32
45MR-4420 Moxa ioThinx 4500 Series (45MR) Expansion Module, 4 AO's, 0 to 10V/0 to 20mA/4 to 20 mA, -20 to 60 deg. C. $306.11
45MR-4420-T Moxa ioThinx 4500 Series (45MR) Expansion Module, 4 AO's, 0 to 10V/0 to 20mA/4 to 20 mA, -40 to 75 deg. C. $410.86

Details

Moxa ioThinx 4500 Series (45MR) Expansion Modules, Available With DI/Os, AIs, Relays, RTDs, and Other I/O Types. (Please Specify Module.)

ioThinx 4500 Series (45MR) I/O Modules

Moxa"™s ioThinx 4500 Series (45MR) Modules are available with DI/Os, AIs, relays, RTDs, and other I/O types, giving users a wide variety of options to choose from and allowing them to select the I/O combination that best fits their target application. With its unique mechanical design, hardware installation and removal can be done easily without tools, greatly reducing the amount of time required to set up and replace the modules.

Features & Benefits

  • Easy tool-free installation and removal
  • Built-in LED indicators for IO channels
  • Wide operating temperature range: -40 to 75 deg. C. (T-models)

Documentation

Spec Sheet
