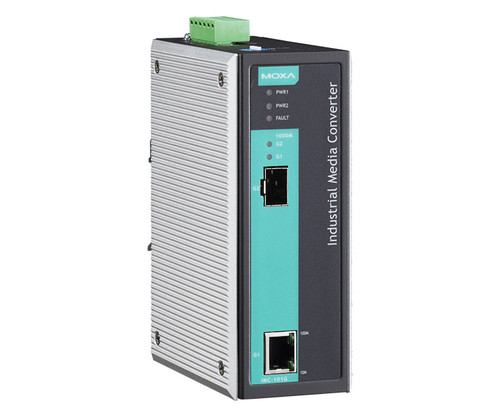

IMC-101G Series Media Converters

Moxa

IMC-101G Series Media Converters

Part #: IMC-101G Series In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $805.70
IMC-101G Series
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/IMC-101G.pdf
hide_matrix:
False
sales_description:
Moxa Industrial Gigabit Media Converter, 10/100/1000Base-T(X) to 1000Base-SX/LX/LHX/ZX (via SFP (Sold Separately)), 24 VDC, DIN-Rail Mount, C1D2 & ATEX Zone 2 Rated. (Please Specify Model.)
parent_sku:
IMC-101G Series
facet_certification:
Hazardous Location
facet_form_factor:
Fixed
facet_port_speed:
10/100/1000
facet_port_types:
Copper
facet_port_types:
SFP Fiber
facet_temperature_range:
Extended
facet_temperature_range:
Standard
facet_type:
Ethernet to Fiber
Adding… The item has been added
Commonly Purchased with:
DINSpace BRKT-19DR-5U-CM Rackmount DIN-Rail Adapter
$300.00
RJ45 CAT 5e Patch Cable - Unshielded
$3.15
See Options

Models

Product ID Description Price
IMC-101G Moxa Industrial Gigabit Media Converter, 10/100/1000Base-T(X) to 1000Base-SX/LX/LHX/ZX (via SFP), 0 to 60 deg C, 24 VDC, DIN-Rail Mount, C1D2 & ATEX Zone 2 Rated. (SFP Modules Sold Separately) $805.70
IMC-101G-T Moxa Industrial Gigabit Media Converter, 10/100/1000Base-T(X) to 1000Base-SX/LX/LHX/ZX (via SFP), -40 to +75 deg. C, 24 VDC, DIN-Rail Mount, C1D2 & ATEX Zone 2 Rated. (SFP Modules Sold Separately) $940.14
IMC-101G-IEX Moxa Industrial Gigabit Media Converter, 10/100/1000Base-T(X) to 1000Base-SX/LX/LHX/ZX (via SFP), 0 to 60 deg.C, 24 VDC, DIN-Rail Mount, C1D2, ATEX Zone 2 & IECEx Rated. (SFP Modules Sold Separately) $926.84
IMC-101G-T-IEX Moxa Industrial Gigabit Media Converter, 10/100/1000Base-T(X) to 1000Base-SX/LX/LHX/ZX (via SFP), -40 to +75 deg.C, 24 VDC, DIN-Rail Mount, C1D2, ATEX Zone 2 & IECEx Rated. (SFP Modules Sold Separately) $1,088.16

Details

Moxa Industrial Gigabit Media Converter, 10/100/1000Base-T(X) to 1000Base-SX/LX/LHX/ZX (via SFP (Sold Separately)), 24 VDC, DIN-Rail Mount, C1D2 & ATEX Zone 2 Rated. (Please Specify Model.)

The IMC-101G industrial Gigabit modular media converters are designed to provide reliable and stable 10/100/1000BaseT(X)-to-1000BaseSX/LX/LHX/ZX media conversion in harsh industrial environments. The IMC-101G’s industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101G converter comes with a relay output warning alarm to help prevent damage and loss. All IMC-101G models are subjected to a 100% burn-in test, and they support a standard operating temperature range of 0 to 60 deg.C and an extended operating temperature range of -40 to 75 deg. C.

Features and Benefits

  • 10/100/1000BaseT(X) and 1000BaseSFP slot supported
  • Link Fault Pass-Through (LFPT)
  • Power failure, port break alarm by relay output
  • Redundant power inputs
  • -40 to 75 deg. C operating temperature range (-T models)
  • Designed for hazardous locations (Class 1 Div. 2/Zone 2, IECEx (-IEX models)).

Documentation

Spec Sheet
