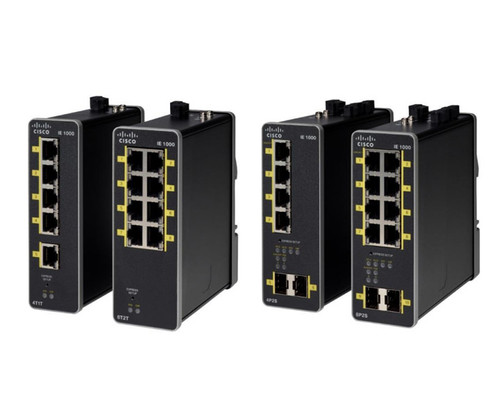

IE-1000 Series Switches

Cisco

IE-1000 Series Switches

Part #: IE-1000 Series In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $541.07
IE-1000 Series
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/Cisco-IE-1000-Switches.pdf
hide_matrix:
False
sales_description:
Cisco IE-1000 Series Lightly Managed Industrial Ethernet Switches, IP30, PoE Optional. (Please Specify Model Number.)
parent_sku:
IE-1000 Series
facet_certification:
Hazardous Location
facet_certification:
Marine
facet_form_factor:
Fixed
facet_management:
Lightly Managed
facet_mounting:
DIN-Rail
facet_port_count:
2 to 6
facet_port_count:
7 to 12
facet_port_speed:
10/100
facet_port_speed:
Partial GB
facet_port_types:
Multimode
facet_port_types:
RJ45
facet_port_types:
SFP Fiber
facet_port_types:
Singlemode
facet_power_considerations:
Low Voltage (Typically 12/24/48 VDC)
facet_temperature_range:
Extended
facet_temperature_range:
Standard
Adding… The item has been added
Commonly Purchased with:
DINSpace BRKT-19DR-5U-CM Rackmount DIN-Rail Adapter
$300.00

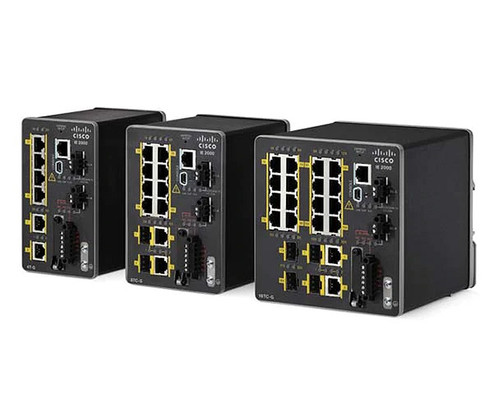

Cisco IE-2000 Series Switches
$799.00
See Options

Models

Product ID Description Price
IE-1000-6T2T-LM Cisco IE-1000 Series Lightly Managed Industrial Ethernet Switch, 8 x 10/100Base-TX RJ45 Ports, 12-24VDC Power Input, IP30, -20 to +70C. $773.38
IE-1000-4P2S-LM Cisco IE-1000 Series Lightly Managed Industrial Ethernet Switch, 2 x GE SFP Ports, 4 x 10/100Base-TX RJ45 PoE/PoE+ Ports, 48-54VDC Power Input, IP30, -40 to +70C. $1,193.51
IE-1000-8P2S-LM Cisco IE-1000 Series Lightly Managed Industrial Ethernet Switch, 2 x GE SFP Ports, 8 x 10/100Base-TX RJ45 PoE/PoE+ Ports, 48-54VDC Power Input, IP30, -40 to +70C. $1,541.78
IE-1000-4T1T-LM Cisco IE-1000 Series Lightly Managed Industrial Ethernet Switch, 5 x 10/100Base-TX RJ45 Ports, 12-24VDC Power Input, IP30, -20 to +70C. $541.07

Details

Cisco IE-1000 Series Lightly Managed Industrial Ethernet Switches, IP30, PoE Optional. (Please Specify Model Number.)

Pricing and availability restrictions may apply, please contact us for details.

Cisco IE 1000 Series Industrial Ethernet Switches
The Cisco Industrial Ethernet (IE) 1000 Series Switches are compact rugged switches aimed to operational technology (OT) users with limited IT network knowledge. The IE 1000 Series Switches provide an easy transformation from the legacy factory to digital solution. For machine builders and machine-to-machine (M2M) solutions is an attractive entry level product as a GUI-based, lightly-managed switch. The IE 1000 is a good fit for locations with harsh temperatures and small spaces, and is Power over Ethernet (PoE) capable with and zero IT management.

The IE 1000 is ideal for industrial Ethernet applications where small and easy-to-be-managed hardened products are required, including factory automation, intelligent transportation systems, city-surveillance programs, building automations etc.

The Cisco IE 1000 Series Switches complement the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000, IE 3000, IE 4000 and IE 5000 Series managed Switches.

The IE 1000 can be easily installed on your network. Through a user-friendly web device manager, the IE 1000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced and secure multiservices over industrial networks.

Features & Benefits

  • Scalability: Four models are available supporting 5, 6, 8 and 10 Ethernet ports, with Fast Ethernet (FE) and Gigabit Ethernet (GE), copper and fiber uplinks options
  • Easy integration: Zero-touch IP discovery or Dynamic Host Configuration Protocol (DHCP)IP addressing and simple web GUI-based management
  • Fast startup time: Starts 30 seconds from cold boot
  • Manageability: Web GUI interface, and diagnostics and analysis options through Simple Network Management Protocol (SNMP) and syslog
  • Security: secure access; port-security
  • Minimize data load: VLAN aware, Internet Group Management Protocol (IGMP) and DHCP snooping to filter unwanted data
  • Lightly-managed: Spanning-tree protocol (STP), Link Layer Discovery Protocol (LLDP), Cisco Discovery Protocol aware
  • Gigabit uplink: Two fiber-optic SFP based. uplink for up to 50 miles (80 kilometers) links
  • Industrial PoE: Up to eight PoE (IEEE 802.af) and PoE+ (802.3at) supported on selected models
  • Redundant voltage feeds, alarm relays support and DIN rail mount
  • Industrial environmental compliance and certifications

Documentation

Spec Sheet
