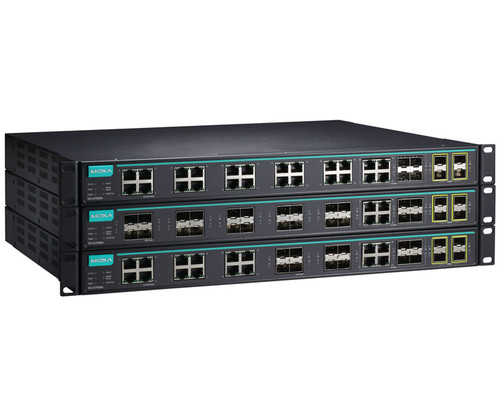

ICS-G7828A Series Switches

Moxa ICS-G7828A Series 24G+4 x 10GbE-Port Layer 3 Full Gigabit Managed Ethernet Switches. (Please Specify Model.)

Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7828A Series is equipped with 24 Gigabit Ethernet ports plus up to 4 10 Gigabit Ethernet ports, and support Layer 3 routing functionality to facilitate the deployment of applications across networks, making them ideal for large-scale industrial networks.

The ICS-G7828A's full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.

Features & Benefits

• 24 Gigabit Ethernet ports plus up to 2 x 10G Ethernet ports
• Up to 28 optical fiber connections (SFP slots)
• Fanless, -40 to 75 deg. C operating temperature range (T models)
• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
• Isolated redundant power inputs with universal 110/220 VAC power supply range
• Supports MXstudio for easy, visualized industrial network management
• V-ON™ ensures millisecond-level multicast data and video network recovery

Additional Features

• Layer 3 switching functionality to move data and information across networks
• Command line interface (CLI) for quickly configuring major managed functions
• Supports advanced VLAN capability with Q-in-Q tagging
• DHCP Option 82 for IP address assignment with different policies
• Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring
• IGMP snooping and GMRP for filtering multicast traffic
• IEEE 802.1Q VLAN and GVRP protocol to ease network planning
• Port mirroring for online debugging
• Automatic warning by exception through email and relay output
• QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
• Port Trunking for optimum bandwidth utilization
• TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
• Access control lists (ACL) increase the flexibility and security of network management
• SNMPv1/v2c/v3 for different levels of network management
• RMON for proactive and efficient network monitoring
• Bandwidth management to prevent unpredictable network status
• Lock port function for blocking unauthorized access based on MAC address
• Digital inputs for integrating sensors and alarms with IP networks
• Redundant, dual AC power inputs
