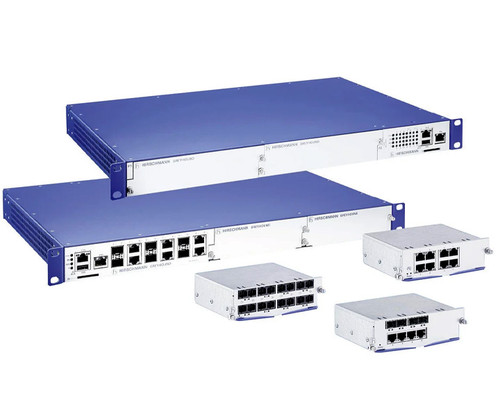

GRS1020-16T9SM9V9HHSE2S Switch

Hirschmann Greyhound Ruggedized Managed Rackmount Ethernet Switch, 16 x 10/100Base-TX Ports, 1 Open 8-Port Media Module Slot. (Media Modules Sold Separately), 0 to 60 deg C, Single 110-250 VDC / 100-240 VAC Power Input, HiOS L2S Firmware, Substation IEC61850, IEEE1613.

Hirschmann™ GREYHOUND Switch Gigabit Ethernet switch with extended range of software features, designed for use in harsh industrial environments with a need for cost-effective, entry-level devices.

As network needs change, the switches offer flexibility through field exchangeable port modules. They also feature a rugged design to handle demanding industrial applications, including power generation and distribution operations, like substations.

For engineers, integrators and machine builders in need of an entry-level solution, Hirschmann introduces its new GREYHOUND family of Gigabit Ethernet switches. GREYHOUND is offered in several customizable variations, depending on the customer’s copper, fiber or Gigabit port needs. GREYHOUND is ideal for industrial businesses under pricing pressure, but that require ruggedized products to withstand extreme environmental conditions. The switches also enable customers to react quickly to changing network requirements, through flexible design and installation options, including varying port styles, more ports overall, no port location restrictions, interchangeable modules and enhanced software features.

Applications
For applications that face harsh environmental conditions and are under extreme pressure to keep both costs down and customer pricing low, the GREYHOUND switch is an ideal low-entry product. The ruggedized GREYHOUND switches have been specially designed to handle demanding electrical power generation and distribution applications, including new installations and retrofits of existing substations, where ambient temperatures can be extremely high. The devices also perform well in transportation and industrial automation applications. For example, with railroad optical networks, passenger and information systems in train stations, conveyor systems, as well as traffic surveillance on highways, bridges and in tunnels.

Your Benefits
The GREYHOUND switches offer a unique combination of price, ports and software features compared to other Ethernet switches on the market. For all-around network protection and uptime, GREYHOUND offers enhanced features through Hirschmann’s operating system, HiOS. The software feature range includes network manage- ment, diagnostics and filter functions, as well as comprehensive security mechanisms. Unlike standard products or even configurable products from the factory, GREYHOUND is not limited by design. Network administrators can react to changing needs in their application and adjust the product as many times as needed, all while in the field. The installation is fast, easy and flexible

Features & Benefits

• Features Fast Ethernet TX, Fast Ethernet SFP and Gigabit Ethernet port options
• Copper and fiber versions are available, including ST, SC, SFP, multimode or single mode
• Ports can be mounted on the front or rear of the device
• Broad immunity to electrostatic discharges, plus high resistance to vibration
• Operates at a temperature range from -40 °C to +70 °C
• Range of new software features available through HiOS
• Meets IEC 61850-3 and IEEE 1613 for substations and NEMA TS2 and EN50121-4 for transportation industry
• Works seamlessly with the Hirschmann Rail Switch Power (RSP) family of switches, including RSP, RSP-Lite, RSP-Expandable and RSP-Smart

Additional Information

• Hirschmann Greyhound Product Overview (PDF)
• Hirschmann Product Configurator
