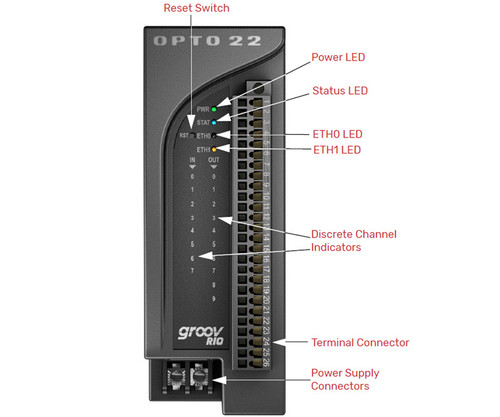

groov RIO MM1 Remote Ethernet I/O IIoT Gateway

Opto 22 groov RIO MM1 Remote Ethernet I/O IIoT Gateway, 10 Multifunction Input And Output Channels, 2 Gigabit Ethernet Ports, PoE or 10-32 VDC Powered, DIN-Rail Mountable, UL C1D2 & ATEX Rated, -20 To +70 deg C.

Opto 22's groov RIO remote Ethernet I/O for industrial internet of things (IIoT) and automation applications solves two main problems with most remote I/O today:

• First, specifying all the required components (rack, power supply, bus coupler, module types, and more) is time-consuming, difficult, and requires significant domain expertise.
• Second, communicating data among field devices, control systems, company software, and cloud services is complex and costly, requiring PLCs, programming, and middleware.

groov RIO revolutionizes remote I/O by solving both problems.

• One part number. A single part number includes built-in multi-function, multi-signal I/O; an I/O processor; power over Ethernet; and mounting without the need for a rack or chassis in a compact industrial package.
• Built-in processing and communication. Web-based configuration, flow logic software, efficient data communication methods, and multiple operations technology (OT) and information technology (IT)

Features & Benefits

• Power the unit and connected I/O with 802.3af PoE Class 0 switches, or a 10-32 VDC power supply
• Wire up to 8 channels of mixed I/O signals (configurable for temperature, current, voltage, or discrete inputs or outputs), plus 2 mechanical relays.
• Run optional distributed features independently on the processor, including counting, thermocouple linearization, digital totalizing, minimum/maximum values, ramping, and more
• Integrate I/O data directly with databases, HMIs, SCADA systems, cloud services, and IoT platforms, using embedded Node-RED
• Connect to existing control systems or building automation systems with Modbus/TCP, OptoMMP, and REST APIs
• Publish process data directly into publish-subscribe architectures with MQTT and Sparkplug or string payloads
• Log data to internal power-fail safe memory or an attached USB mass storage device
• Protect with built-in security, including configurable firewalls, encryption, user accounts, and VPN client
• Install anywhere with wide -20 to 70 °C rating, UL Hazardous Locations approval, ATEX compliance
