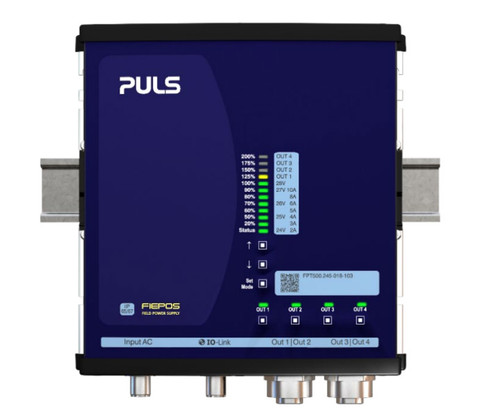

FPS300.245-016-101 Field Power Supply

Puls FIEPOS Field Power Supply, IP65/67, 24-28VDC/12.5 Amp Output, 300W, Single Phase, 100-240VAC/110-300VDC Input, IO-Link, 7/8" 3-Pin Power Input & Up to (4) x 7/8" 5-Pin Outputs.

The FPS300is an industrial grade power supply for the 1-phase mains system incorporated in a rugged wall- mount housing with degree of protection IP65/67.

It provides two to four stabilized outputs that is galvanically separated from the input. The negative potential of the outputs is permanently connected to PE within the unit.

The most outstanding features of the FPS series are the compact size, the wide operational temperature range, the extremely low input inrush current and the very high efficiencies, which are achieved by various design technologies. Large sized output capacitors can absorb and store regenerative energy from breaking motors.

Various connector options support the different needs of individual applications. Please contact PULS for possible options. High immunity to transients and power surges as well as low electromagnetic emission and an international approval package makes usage in nearly every application possible.

Features and Benefits

• IP65/67 degree of protection
• 600Wpeak 5s
• 1AC 100-240V wide-range input
• Up to 4 switchable outputs
• 95.6% full load and excellent partial load efficiencies
• DIN rail mounting possible, option “D”
• Output connected to PE (PELV)
• Version without connection to PE on request
• Large output capacitors
• Not potted
• Negligible low input inrush current surge
• Full power between -25 deg. C and +55 deg. C
• IO-Link
• 3-years manufacturer's warranty
