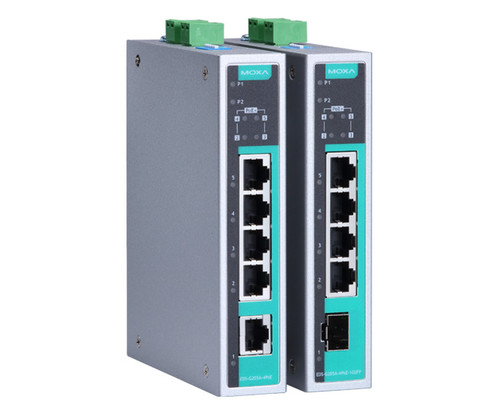

EDS-G205A-4PoE Series Switches
EDS-G205A-4PoE Series Switches
EDS-G205A-4PoE Series Switches

Moxa

EDS-G205A-4PoE Series Switches

Part #: EDS-G205A-4PoE Series In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $985.19
EDS-G205A-4PoE Series
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/EDS-G205A-4PoE_Series.pdf
hide_matrix:
False
sales_description:
Moxa EDS-G205A-4PoE Series 5-Port Unmanaged Gigabit PoE+ Industrial Ethernet Switches, IP30 Metal Housing. (Please specify model number.)
parent_sku:
EDS-G205A-4PoE Series
facet_certification:
Rail
facet_form_factor:
Fixed
facet_management:
Unmanaged
facet_mounting:
DIN-Rail
facet_port_count:
2 to 6
facet_port_speed:
Full GB
facet_port_types:
Copper Only
facet_port_types:
Multimode
facet_port_types:
RJ45
facet_port_types:
SFP Fiber
facet_port_types:
Singlemode
facet_power_considerations:
Low Voltage (Typically 12/24/48 VDC)
facet_power_considerations:
PoE Support
facet_temperature_range:
Extended
facet_temperature_range:
Standard
Adding… The item has been added
Commonly Purchased with:
DINSpace BRKT-19DR-5U-CM Rackmount DIN-Rail Adapter
$300.00
MJ8-POE-A Surge Protector
$85.32

Models

Product ID Description Price
EDS-G205A-4PoE-T Moxa Unmanaged Gigabit PoE Industrial Ethernet Switch, 5 x 10/100/1000Base-TX Ports (4 are 802.3af/at PoE+), DIN-Rail Mount, 24/48 VDC Powered, -40 to +75 deg. C. $1,086.70
EDS-G205A-4PoE-1GSFP Moxa Unmanaged Gigabit PoE Industrial Ethernet Switch, 4 x 10/100/1000Base-TX 802.3af/at PoE+ Ports, 1 Gigabit SFP Slot, DIN-Rail Mount, 24/48 VDC Powered, 0 to 60 deg. C. (SFP Modules Sold Separately.) $1,051.97
EDS-G205A-4PoE-1GSFP-T Moxa Unmanaged Gigabit PoE Industrial Ethernet Switch, 4 x 10/100/1000Base-TX 802.3af/at PoE+ Ports, 1 Gigabit SFP Slot, DIN-Rail Mount, 24/48 VDC Powered, -40 to +75 deg. C. (SFP Modules Sold Separately.) $1,158.57
EDS-G205A-4PoE Moxa Unmanaged Gigabit PoE Industrial Ethernet Switch, 5 x 10/100/1000Base-TX Ports (4 are 802.3af/at PoE+), DIN-Rail Mount, 24/48 VDC Powered, 0 to 60 deg. C. $985.19

Details

Moxa EDS-G205A-4PoE Series 5-Port Unmanaged Gigabit PoE+ Industrial Ethernet Switches, IP30 Metal Housing. (Please specify model number.)

The EDS-G205A-4PoE switches are smart, 5-port, unmanaged full-gigabit Ethernet switches supporting Power-over-Ethernet on ports 2 to 5. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-G205A-4PoE switches enable centralization of the power supply, providing up to 30 watts of power per port and reducing the effort needed for installing power.

The switches can be used to power IEEE 802.3af/at standard devices (PD), eliminating the need for additional wiring, and they support IEEE 802.3/802.3u/802.3x with 10/100/1000M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical high-bandwidth solution for your industrial Ethernet network.

Features and Benefits

  • Full-gigabit Ethernet ports
  • IEEE 802.3af/at, PoE/PoE+ standards
  • Up to 30 watts output per PoE port
  • 24/48 VDC flexible redundant power inputs
  • Intelligent power consumption detection and classification
  • Smart PoE over current and short circuit protection
  • 0 to 60 deg. C operating temperature range (standard models)
  • -40 to 75 deg. C operating temperature range (T models)
