EDS-G2005/G2008-EL Series Switches (Metal)
EDS-G2005/G2008-EL Series Switches (Metal)

Moxa

EDS-G2005/G2008-EL Series Switches (Metal)

Part #: EDS-G2005/G2008-EL Series In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $189.00
EDS-G2005/G2008-EL Series
pdf_1_name:
EDS-G2005-EL Specs
pdf_1_url:
pdfs/moxa-eds-g2005-el-switches.pdf
pdf_2_name:
EDS-G2008-EL Specs
pdf_2_url:
pdfs/moxa-eds-g2008-el-switches.pdf
hide_matrix:
False
sales_description:
Moxa EDS-G2005/G2008-EL Series Compact Unmanaged Industrial Ethernet Switch, 5 or 8 x 10/100/1000Base-TX RJ45 Ports, IP40 Metal Housing, DIN-Rail Mount, 9.6-60 VDC Powered. (Please Specify Model and Temperature Variant.)
parent_sku:
EDS-G2005/G2008-EL Series
facet_form_factor:
Fixed
facet_management:
Unmanaged
facet_mounting:
DIN-Rail
facet_port_count:
2 to 6
facet_port_count:
7 to 12
facet_port_speed:
Full GB
facet_port_types:
Copper Only
facet_port_types:
RJ45
facet_power_considerations:
Low Voltage (Typically 12/24/48 VDC)
facet_temperature_range:
Extended
facet_temperature_range:
Standard
Adding… The item has been added
Commonly Purchased with:

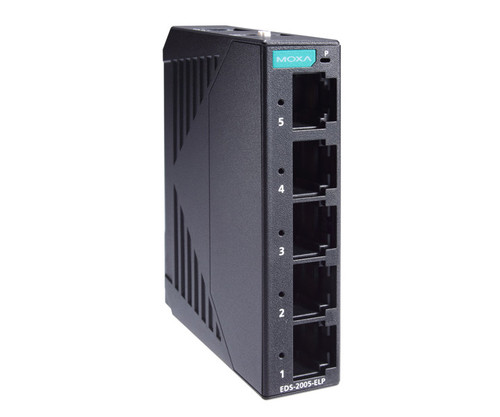

Moxa EDS-G2005/G2008-ELP Series Switches (Polycarbonate)
$169.00
See Options

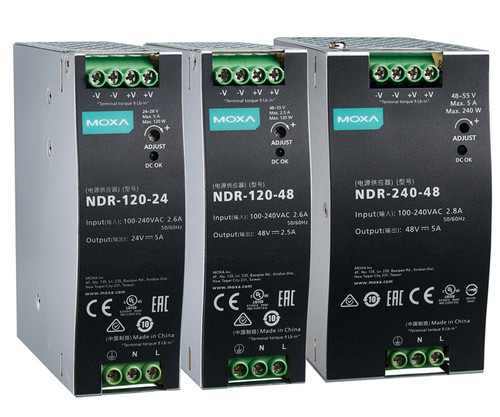

Moxa NDR-120-24 Power Supply
$129.70

Models

Product ID Description Price

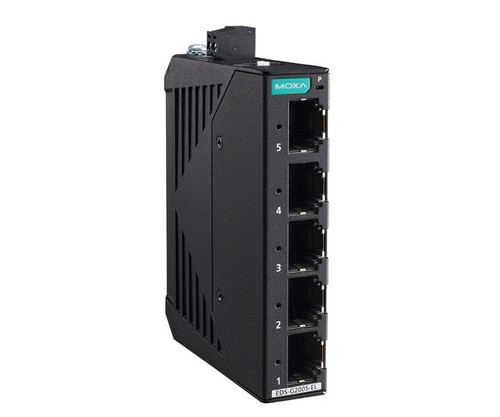

EDS-G2005-EL Moxa Compact Unmanaged Industrial Ethernet Switch, 5 x 10/100/1000Base-TX RJ45 Ports, IP40 Metal Housing, DIN-Rail Mount, 9.6-60 VDC Powered, -10 to 60 deg. C. $189.00

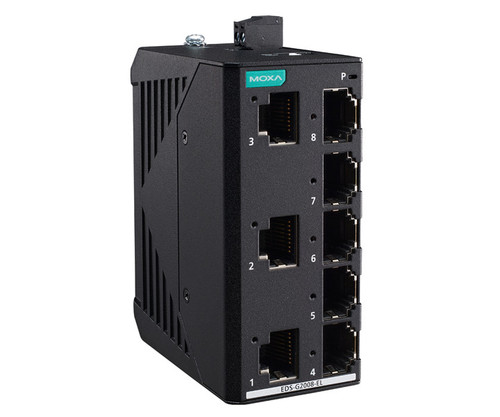

EDS-G2008-EL Moxa EDS-G2008-EL Compact Unmanaged Industrial Ethernet Switch, 8 x 10/100/1000Base-TX RJ45 Ports, IP40 Metal Housing, DIN-Rail Mount, 9.6-60 VDC Powered, -10 to 60 deg. C. $265.00
EDS-G2005-EL-T Moxa EDS-G2005-EL-T Compact Unmanaged Industrial Ethernet Switch, 5 x 10/100/1000Base-TX RJ45 Ports, IP40 Metal Housing, DIN-Rail Mount, 9.6-60 VDC Powered, -40 to +75 deg. C. $229.00
EDS-G2008-EL-T Moxa EDS-G2008-EL-T Compact Unmanaged Industrial Ethernet Switch, 8 x 10/100/1000Base-TX RJ45 Ports, IP40 Metal Housing, DIN-Rail Mount, 9.6-60 VDC Powered, -40 to +75 deg. C. $305.00

Details

Moxa EDS-G2005/G2008-EL Series Compact Unmanaged Industrial Ethernet Switch, 5 or 8 x 10/100/1000Base-TX RJ45 Ports, IP40 Metal Housing, DIN-Rail Mount, 9.6-60 VDC Powered. (Please Specify Model and Temperature Variant.)

The EDS-G2005/G2008-EL Series of industrial Ethernet switches have up to eight Gigabit Ethernet ports, which are ideal for applications that require simple industrial Ethernet connections. To provide greater versatility for use with applications from different industries, the EDS-2008-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-G2008-EL Series has a rugged metal housing to ensure suitability for use in industrial environments.

The EDS-G2005/G2008-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-G2008-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The switches have a standard operating temperature range of -10 to 60 deg. C with wide-temperature (-40 to 75 deg. C) models also available.

Features and Benefits

  • Full Gigabit Ethernet ports
  • Compact size for easy installation
  • QoS supported to process critical data in heavy traffic
  • IP40-rated metal housing
  • -40 to 75 deg. C wide operating temperature range (-T models)

Documentation

EDS-G2005-EL Specs EDS-G2008-EL Specs
