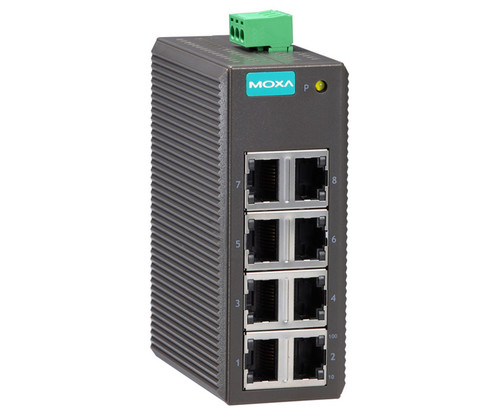

EDS-208 Series Switches
EDS-208 Series Switches
EDS-208 Series Switches

Moxa

EDS-208 Series Switches

Part #: EDS-208 Series In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $162.60
EDS-208 Series
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/EDS-205_208_Series.pdf
hide_matrix:
False
sales_description:
Moxa EDS-208 Series 8-Port Unmanaged Industrial Ethernet Switch, Polycarbonate Housing. (Please Specify Model Number).
parent_sku:
EDS-208 Series
facet_form_factor:
Fixed
facet_management:
Unmanaged
facet_mounting:
DIN-Rail
facet_port_count:
7 to 12
facet_port_speed:
10/100
facet_port_types:
Copper Only
facet_port_types:
Multimode
facet_port_types:
RJ45
facet_port_types:
SC
facet_port_types:
ST
facet_power_considerations:
Low Voltage (Typically 12/24/48 VDC)
facet_temperature_range:
Standard
Adding… The item has been added
Commonly Purchased with:
DINSpace BRKT-19DR-5U-CM Rackmount DIN-Rail Adapter
$300.00

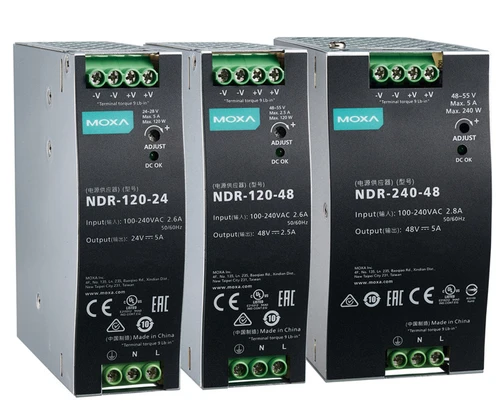

Moxa NDR-120-24 Power Supply
$129.70

Models

Product ID Description Price
EDS-208-M-SC Moxa Unmanaged Industrial Ethernet Switch, 7 x 10/100Base-TX, RJ45, 1 x 100Base-FX, Multimode, SC, Polycarbonate Housing, -10 to +60 deg. C. $252.14
EDS-208-M-ST Moxa Unmanaged Industrial Ethernet Switch, 7 x 10/100Base-TX, RJ45, 1 x 100Base-FX, Multimode, ST, Polycarbonate Housing, -10 to +60 deg. C. $252.14
EDS-208 Moxa Unmanaged Industrial Ethernet Switch, 8 x 10/100Base-TX, RJ45, Polycarbonate Housing, -10 to +60 deg. C. $162.60

Details

Moxa EDS-208 Series 8-Port Unmanaged Industrial Ethernet Switch, Polycarbonate Housing. (Please Specify Model Number).

The EDS-208 series of industrial Ethernet switches are entry-level industrial 8-port Ethernet switches that support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The switches can be easily installed on a DIN-Rail as well as in distribution boxes. The DIN-Rail mounting capability, wide operating temperature, and the the IP30 housing with LED indicators make the plug-and-play EDS-208 switches easy to use and reliable.

Features

  • 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi-mode, SC/ST connector)
  • IEEE802.3/802.3u/802.3x support
  • Broadcast storm protection
  • DIN-Rail mounting ability
  • -10 to 60 deg. C operating temperature range

Documentation

Spec Sheet
