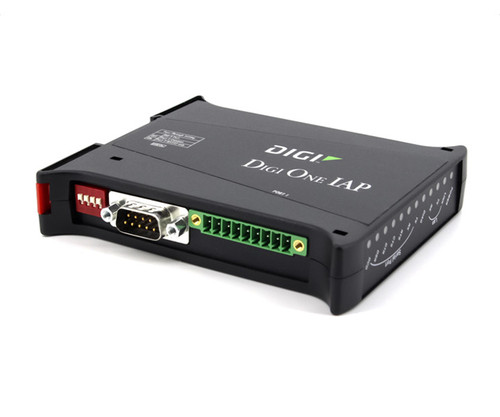

Digi One IAP Device Server

Digi One IAP 2-Port Serial to Ethernet Device Server, Industrial Protocol Version, DIN-Rail Mount, C1D2 Rated, 9-30 VDC Powered, 0 to 60 deg C

Digi One IAP combines reliable serial-to-Ethernet connectivity with protocol conversion and interoperability. Users can IP enable a broad range of serial devices, as well as link two industrial devices. It is ideal for device management applications requiring specific industry protocol support.

Serial server functionality built into Digi One IAP allows any serial device to be connected to a TCP/IP network. Applications may communicate with the serial device using TCP/UDP or Digi’s patented RealPort® COM port redirector for remote native COM port access.

Digi One IAP supports a variety of serial and Ethernet protocols, allowing users to bridge serial and Ethernet devices, or both. Multi-master access allows multiple masters to communicate with a single slave across protocols. Digi One IAP converts ASCII data from serial devices to Ethernet protocols. An additional serial port can act as a pass-through port, allowing local devices to communicate with a slave unit without disrupting the serial-to-Ethernet connection.

Benefits

• Industrial protocol conversion and interoperability
• 1 DB-9 serial port and additional pass-through port
• Multi-master/multi-protocol support
• Switch selectable RS-232/422/485
• Tunable for low latency or optimized throughput
