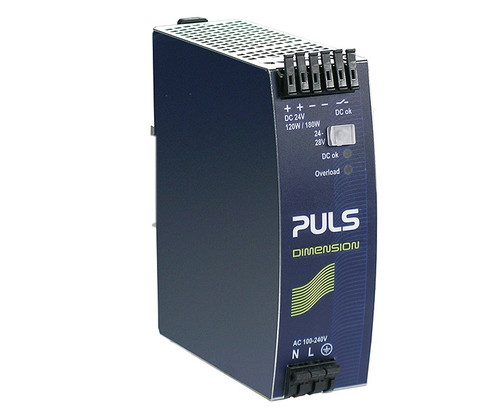

CS5.241 Power Supply

PULS

CS5.241 Power Supply

Part #: CS5.241 In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
$265.50
CS5.241
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/cs5e241.pdf
hide_matrix:
True
in_stock:
True
sales_description:
Puls Dimension C-Series Single Phase Power Supply, 120W, 24VDC/5.0A Output, 100/240VAC Input, DIN-Rail Mount Metal Housing, -25 deg. to +70 deg. C, 20% Current Reserves, Class 1, Div. 2 Rated.
parent_sku:
CS5.241
facet_input_voltage:
100-240VAC
facet_mounting:
DIN-Rail
facet_output_current:
2.1A-5A
facet_output_power:
101-240W
facet_output_voltage:
24VDC
facet_type:
Power Supplies
Adding… The item has been added
Commonly Purchased with:
DINSpace BRKT-19DR-4U Rackmount DIN-Rail Adapter
$236.00
PULS CP5.241 Power Supply
$243.00

Details

Puls Dimension C-Series Single Phase Power Supply, 120W, 24VDC/5.0A Output, 100/240VAC Input, DIN-Rail Mount Metal Housing, -25 deg. to +70 deg. C, 20% Current Reserves, Class 1, Div. 2 Rated.

The Dimension C-Series are cost optimized power supplies without compromising quality, reliability and performance.

The C-Series is part of the Dimension power supply family, existing alongside the high featured Q-series. The C series includes all the essential basic functions and the devices have a power reserve of 20%. This extra current may even be used continuously at temperatures up to +45°C. The most important features are the small size, the high efficiency and the wide temperature range.

The Auto-select input makes worldwide installation and usage very simple. Defects or system failures caused by wrongly set switches can not occur.

Features & Benefits

  • AC 100-120 / 200-240V Auto Select Input
  • Efficiency up to 90.2%
  • Width only 32mm
  • 20% Output Power Reserves
  • Full Output Power Between -25°C and +60°C
  • Minimal Inrush Current Surge
  • 3-Year Manufacturer's Warranty

Documentation

Spec Sheet
