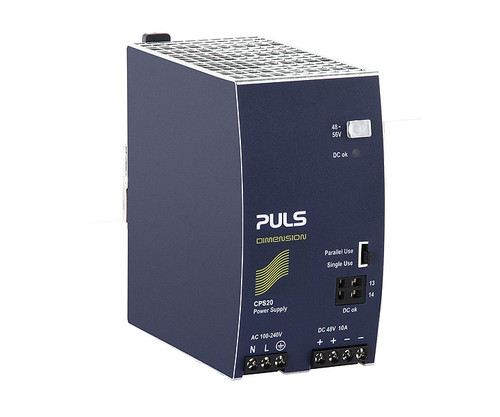

CPS20.481 Power Supply

PULS

CPS20.481 Power Supply

Part #: CPS20.481 In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
$670.50
CPS20.481
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/cps20e481.pdf
hide_matrix:
True
in_stock:
False
sales_description:
Puls Dimension C-Series Single Phase Power Supply, 480W, 48-56VDC, 10.0A Output, 100-240VAC Input, DIN-Rail Mount Metal Housing, -25 deg. to +70 deg. C, 20% Current Reserves, Class 1, Div. 2 Rated.
parent_sku:
CPS20.481
facet_input_voltage:
100-240VAC
facet_mounting:
DIN-Rail
facet_output_current:
5.1A-20A
facet_output_power:
240-499W
facet_output_voltage:
48VDC+
facet_type:
Power Supplies
Adding… The item has been added
Commonly Purchased with:
DINSpace BRKT-19DR-4U Rackmount DIN-Rail Adapter
$236.00
PULS CP20.481 Power Supply
$558.00

Details

Puls Dimension C-Series Single Phase Power Supply, 480W, 48-56VDC, 10.0A Output, 100-240VAC Input, DIN-Rail Mount Metal Housing, -25 deg. to +70 deg. C, 20% Current Reserves, Class 1, Div. 2 Rated.

The Dimension C-Series are cost optimized power supplies without compromising quality, reliability and performance. The C-Series is part of the DIMENSION power supply family. The most outstanding features of CPS20.481 are the high efficiency, electronic inrush current limitation, active PFC, wide operational temperature range.

The C-Series includes all the essential basic functions. The devices have a power reserve of 20% included, which may even be used continuously at temperatures up to +45 deg. C. Additionally, the CPS20.481 can deliver about 4 times the nominal output current for 15ms which helps to trip fuses on faulty output branches.

High immunity to transients and power surges as well as low electromagnetic emission, a DC-OK relay contact and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.

Features & Benefits

  • AC 100-240V Wide-range Input
  • Width only 65mm
  • Efficiency up to 93.9%
  • ATEX and IECEx Approved
  • Excellent Partial Load Efficiency
  • 20% Output Power Reserves
  • Safe HiccupPLUS Overload Mode
  • Easy Fuse Tripping due to High Overload Current (typ. 45A for 15ms)
  • Active Power Factor Correction (PFC)
  • Minimal Inrush Current Surge
  • Full Power Between -25 deg. C and +60 deg. C
  • DC-OK Relay Contact
  • Current Sharing Feature for Parallel Use
