CP10.241 Power Supply

PULS

CP10.241 Power Supply

Part #: CP10.241 In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
$333.00
CP10.241
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/cp10e241.pdf
hide_matrix:
True
in_stock:
True
sales_description:
Puls Dimension CP-Series Reduced Width Single Phase Power Supply, 240W, 24-28VDC/10.0A Output, 100-240VAC & 100-150VDC Input, DIN-Rail Mount Metal Housing, -25 deg. to +60 deg. C, 20% Current Reserves, Class 1, Div. 2 Rated.
parent_sku:
CP10.241
facet_input_voltage:
100-240VAC
facet_input_voltage:
110-300VDC
facet_mounting:
DIN-Rail
facet_output_current:
5.1A-20A
facet_output_power:
101-240W
facet_output_voltage:
24VDC
facet_type:
Power Supplies
Adding… The item has been added
Commonly Purchased with:
DINSpace BRKT-19DR-4U Rackmount DIN-Rail Adapter
$236.00

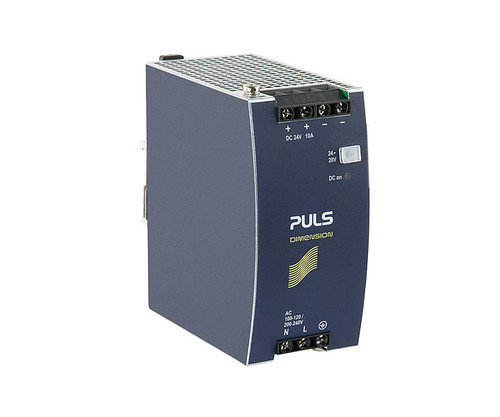

PULS CS10.241 Power Supply
$369.00

Details

Puls Dimension CP-Series Reduced Width Single Phase Power Supply, 240W, 24-28VDC/10.0A Output, 100-240VAC & 100-150VDC Input, DIN-Rail Mount Metal Housing, -25 deg. to +60 deg. C, 20% Current Reserves, Class 1, Div. 2 Rated.

The DIMENSION CP-Series units are high-end power supplies in a medium price range without compromising quality, reliability and performance. The CP-Series is part of the DIMENSION power supply family. The most outstanding features of CP10 series are the high efficiency, advanced inrush current limitation, active PFC and the wide operational temperature range.

The CP-Series includes all the essential basic functions. The devices have a power reserve of 20% included, which may even be used continuously at temperatures up to +45 deg. C. Additionally, the CP10 can deliver three times the nominal output current for at least 12ms which helps to trip fuses on faulty output branches.

High immunity to transients and power surges as well as low electromagnetic emission, a DC-OK relay contact and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.

Features & Benefits

  • AC 100-240V Wide-range Input
  • DC 100-150V Wide-range Input
  • Width only 39mm
  • Efficiency up to 95.2%
  • Excellent Partial Load Efficiency
  • 20% Output Power Reserves
  • Safe HiccupPLUS Overload Mode
  • Easy Fuse Breaking due to High Overload Peak Current
  • Active Power Factor Correction (PFC)
  • Minimal Inrush Current Surge
  • Full Power Between -25 deg. C and +60 deg. C
  • DC-OK Relay Contact

Documentation

Spec Sheet
