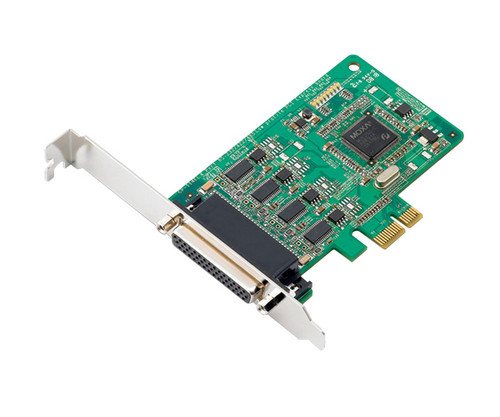

CP-114EL-DB25M PCI Express Board

Moxa 4-Port RS-232/422/485 Low Profile PCI Express x1 Serial Board (Includes 4 x DB25(M) Cable, Pt #CBL-M44M25x4-50).

The CP-114EL and CP-114EL-I are smart, 4-port PCI Express boards designed for POS and ATM applications. The boards are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows and Linux. In addition, each of the boards€™ 4 RS-232/422/485 serial ports supports a super-fast 921.6 kbps baudrate. The CP-114EL and CP-114EL-I provide full modem control signals to ensure compatibility with a wide range of serial peripherals, and their PCI Express €œx1€ classification allows the boards to be installed in any PCI Express slot.

Smaller Form Factor
The CP-114EL and CP-114EL-I are low profile boards that are compatible with any PCI Express slot. The boards require only a 3.3 VDC power supply, which means that the boards fit any host computer, ranging from shoebox to standard-sized PCs.

Drivers Provided for Windows, Linux
Moxa continues to support a wide variety of operating systems, and the CP-114EL/EL-I boards are no exception. Reliable Windows COM and Linux TTY drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.

Features and Benefits

• PCI Express x1 compliant
• 921.6 kbps maximum baudrate for super-fast data transmission
• 128-byte FIFO and on-chip H/W, S/W flow control
• Low profile form factor fits small-sized PCs
• Drivers provided for a broad selection of operating systems, including the latest Windows and Linux
• 15 kV ESD protection on the board
