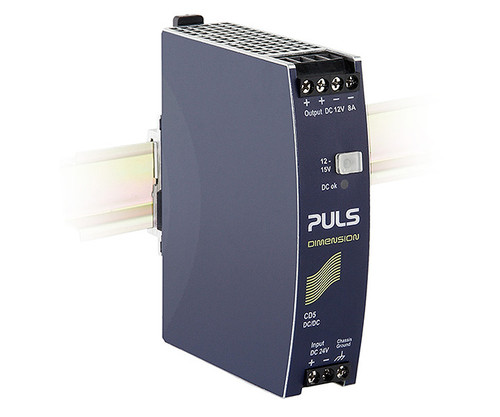

CD5.121 DC/DC Converter

PULS

CD5.121 DC/DC Converter

Part #: CD5.121 In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
$450.00
CD5.121
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/cd5e121.pdf
hide_matrix:
True
in_stock:
True
sales_description:
Puls Dimension CD-Series DC/DC Converter, 96W, 12-15VDC/8.0A Output, 18/32VDC Input, -25 deg. to +70 deg. C, 20% Current Reserves, Class 1, Div. 2 Rated.
parent_sku:
CD5.121
facet_input_voltage:
0-23VDC
facet_input_voltage:
24-47VDC
facet_mounting:
DIN-Rail
facet_output_current:
5.1A-20A
facet_output_power:
51-100W
facet_output_voltage:
12VDC
facet_type:
DC/DC Converters
Adding… The item has been added
Commonly Purchased with:
DINSpace BRKT-19DR-4U Rackmount DIN-Rail Adapter
$236.00

Details

Puls Dimension CD-Series DC/DC Converter, 96W, 12-15VDC/8.0A Output, 18/32VDC Input, -25 deg. to +70 deg. C, 20% Current Reserves, Class 1, Div. 2 Rated.

The Dimension CD-Series offer DIN-rail DC/DC converters in the 92-120W output power range in a very compact housing. These DC/DC converters are allowed to run with a battery or similar sources. The CD5.121 converts a 24V voltage to a 12V voltage. The CD5.121 includes all the essential basic functions and has a power reserve of 20% included. This extra power can be used continuously up to +45 deg. C. The output is electrically isolated from the input in a safe way. The input is protected against reversed voltages and contains a soft start function.

Features & Benefits

  • 24V DC-Input
  • Isolated 12Vdc Output
  • Efficiency up to 88.2%
  • Width only 32mm
  • 20% Output Power Reserves
  • Full Power Between -25 deg. C and +60 deg. C
  • Soft-start Function Included
  • Minimal Inrush Current Surge
  • Reverse Input Polarity Protection
  • 3-Year Manufacturer's Warranty

Documentation

Spec Sheet
