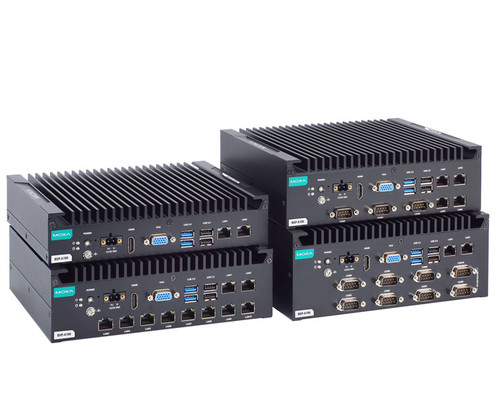

BXP-A100 Series Computers

Moxa BXP-A100 Series Box Type Computers With Intel Atom X Processors. (Please Specify Model.)

The BXP-A100 wall-mount computers are powered by an Intel Atom® X processor. The computers come with a rich set of interface options including up to 10 software-selectable RS-232/422/485 serial ports, up to 10 gigabit Ethernet ports, 4 digital inputs, and 4 digital outputs. The communication interfaces are located on the front and rear sides of the product, enabling easy access and expansion for industrial applications. A dual-storage design that includes CFast and SD slots enables easy storage expansion. The unique battery fastener cover design for the battery slot secures the battery in place and ensures stability in all operating environments.

The BXP-A100 compact wall-mountable computers come in a fanless design and can withstand a temperature range of -30 to 60°C, making them a good fit for harsh operating environments. The built-in TPM 2.0 module secures the platform from unauthorized access. The BXP-A100 Series is an intelligent computing solution that perfectly fulfills both OT and IT requirements of industrial environments.

Features and Benefits

• Box-type computer with fanless design
• Intel Atom® X Series processor
• Rich interface options for up to 10 serial and 10 LAN ports
• Compact size to fit most field applications
• -30 to 60 deg. C operating temperature range
