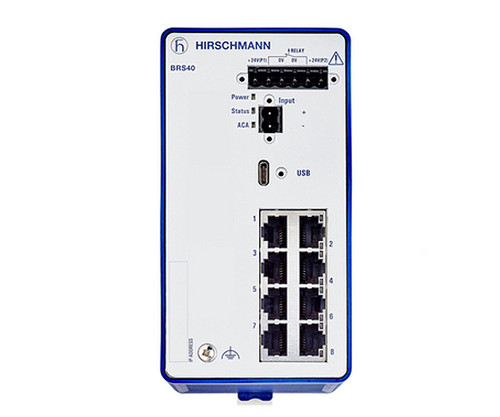

BRS40-00089999-SFCY99HHSEA Rail Switch

Hirschmann

BRS40-00089999-SFCY99HHSEA Rail Switch

Part #: BRS40-00089999-SFCY99HHSEA In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
$2,782.17
BRS40-00089999-SFCY99HHSEA
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/BRS40-00089999-SFCY99HHSEA.pdf
hide_matrix:
True
in_stock:
False
sales_description:
Hirschmann Bobcat BRS40-00089999-SFCY99HHSEA Industrial Ethernet Switch, 8 x 100/1000Base-TX, Redundant 24 - 48 VDC + 24 VAC Power Inputs, 0 to 60 deg C Operating Temperature Range, HiOS Layer 2 Advanced Firmware, IP30 Housing, cUL61010 Certified.
parent_sku:
BRS40-00089999-SFCY99HHSEA
facet_form_factor:
Fixed
facet_management:
Managed - Layer 2
facet_mounting:
DIN-Rail
facet_port_count:
7 to 12
facet_port_speed:
Full GB
facet_port_types:
Copper Only
facet_port_types:
RJ45
facet_power_considerations:
Low Voltage (Typically 12/24/48 VDC)
facet_temperature_range:
Standard
Adding… The item has been added
Commonly Purchased with:
Hirschmann ACA22-USB-C EEC Auto-Configuration Adapter
$220.28
Hirschmann RPS 30 Power Supply
$240.08

Details

Hirschmann Bobcat BRS40-00089999-SFCY99HHSEA Industrial Ethernet Switch, 8 x 100/1000Base-TX, Redundant 24 - 48 VDC + 24 VAC Power Inputs, 0 to 60 deg C Operating Temperature Range, HiOS Layer 2 Advanced Firmware, IP30 Housing, cUL61010 Certified.

For a custom configuration, please visit the product configurator and contact us for assistance and pricing.

Hirschmann BOBCAT Next Generation Managed Switches

Every year, the number of devices requiring greater bandwidth to remain reliable and well-connected increases. The Hirschmann BOBCAT Managed Switch is built to help manufacturers keep pace with this change and build next generation networks.

The switches support the new IEEE 802.3bz standard with 2.5 Gigabit speeds to bridge the gap between 1 Gigabit and 10 Gigabit speeds. Legacy devices or networks can be connected with 100 Mbit/s, 1 Gigabit uplinks for current networks or 2.5 Gigabit for future-proof networks. The BOBCAT switches support all speeds by replacing the SFP in the field.

The switches are also the first of its kind to enable real-time communication using time-sensitive networking (TSN). Industrial applications require this capability to maximize performance and security, even under the most demanding conditions.

Benefits

  • Simultaneously support multiple services on one network through TSN technology
  • Limit downtime and ensure network protection through advanced security features
  • Prepare for future network growth with increased bandwidth and speed capabilities

Features

  • Real-time TSN Ethernet support for precise data transmission
  • Advanced security features, including wire-speed access control lists (ACL) and automatic denial-of-service (DoS) prevention
  • Increased bandwidth capabilities, supporting tri-speed fiber SFP slots with 100MB/s, 1 Gigabit and 2.5 Gigabit speeds
  • Hardware-supported time synchronization in accordance with IEEE 1588v2 Precision Time Protocol
  • Interoperability with legacy systems for simplified migration
  • Additional interface options through digital input for more flexibility
  • Robust industrial design reinforces the switch’s resistance against harsh conditions

Documentation

Spec Sheet
