AWK-1151C Series Wireless Client
AWK-1151C Series Wireless Client

Moxa

AWK-1151C Series Wireless Client

Part #: AWK-1151C Series In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $682.86
AWK-1151C Series
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/moxa-awk-1151c-wireless.pdf
hide_matrix:
False
sales_description:
Moxa AWK-1151C Series Industrial IEEE 802.11a/b/g/n/ac Wireless Client, 2.4/5GHz Selectable Dual Band, 1 x 10/100/1000 RJ45 Ethernet Port, Redundant 9-30 VDC Power Inputs, DIN-Rail Mount (Wall Mount Kit Sold Separately). (Please Specify Band and Temp
sales_description_2:
erature Variant.)
parent_sku:
AWK-1151C Series
facet_application:
Indoor
facet_mounting:
DIN-Rail
facet_power_considerations:
Low Voltage (Typically 12/24/48 VDC)
facet_technology:
2.4 GHz
facet_technology:
5 GHz
facet_type:
Client
Adding… The item has been added
Commonly Purchased with:
Moxa A-CRF-RMNM-L1-300 Cable
$146.52
Moxa ANT-WDB-ONF-0709 Antenna
$159.80

Models

Product ID Description Price
AWK-1151C-US Moxa AWK-1151C-US, 802.11ac Wireless Client, US Band, 2.4/5GHz Selectable Dual Band, 1 x 10/100/1000 RJ45 Ethernet Port, Redundant 9-30 VDC Power Inputs, DIN-Rail Mount (Wall Mount Kit Sold Separately), -25 to +60 deg C. $682.86
AWK-1151C-US-T Moxa AWK-1151C-US-T, 802.11ac Wireless Client, US Band, 2.4/5GHz Selectable Dual Band, 1 x 10/100/1000 RJ45 Ethernet Port, Redundant 9-30 VDC Power Inputs, DIN-Rail Mount (Wall Mount Kit Sold Separately), -40 to +75 deg C. $796.86
AWK-1151C-UN Moxa AWK-1151C-UN, 802.11ac Wireless Client, UN Band, 2.4/5GHz Selectable Dual Band, 1 x 10/100/1000 RJ45 Ethernet Port, Redundant 9-30 VDC Power Inputs, DIN-Rail Mount (Wall Mount Kit Sold Separately), -25 to +60 deg C. $682.86
AWK-1151C-UN-T Moxa AWK-1151C-UN-T, 802.11ac Wireless Client, UN Band, 2.4/5GHz Selectable Dual Band, 1 x 10/100/1000 RJ45 Ethernet Port, Redundant 9-30 VDC Power Inputs, DIN-Rail Mount (Wall Mount Kit Sold Separately), -40 to +75 deg C. $796.86

Details

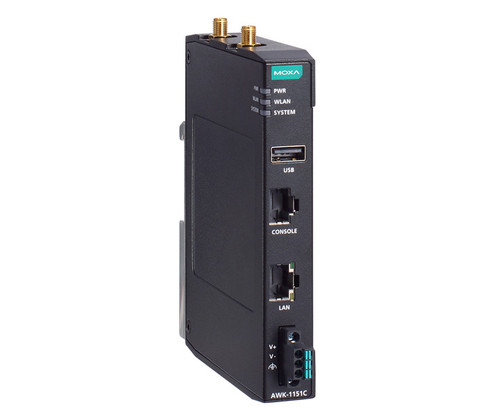

Moxa AWK-1151C Series Industrial IEEE 802.11a/b/g/n/ac Wireless Client, 2.4/5GHz Selectable Dual Band, 1 x 10/100/1000 RJ45 Ethernet Port, Redundant 9-30 VDC Power Inputs, DIN-Rail Mount (Wall Mount Kit Sold Separately). (Please Specify Band and Temperature Variant.)

The AWK-1151C Series industrial wireless client is designed to meet the growing need for faster data transmission speeds through IEEE 802.11ac technology for data rates of up to 867 Mbps. The AWK-1151C is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The compact form factor with DIN-rail or optional wall mounting easily fits into industrial machines or control cabinets, offering reliable wireless connectivity. The AWK-1151C can operate on the 2.4 or 5 GHz band and is backwards-compatible with existing 802.11a/b/g/n deployments to future-proof your wireless investments.

Advanced 802.11ac Industrial Wireless Solution
 - 802.11a/b/g/n/ac compliant client for flexible deployment
 - DFS channel support allows a wider range of 5 GHz channel selection to avoid interference from existing wireless infrastructure

Advanced Wireless Technology
 - Seamless roaming with client-based Turbo Roaming for < 150 ms roaming recovery time between APs (Client Mode)

Industrial Ruggedness
 - Integrated antenna isolation designed to provide protection against external electrical interference
 - Wide operating temperature models (-T) provided for smooth wireless communication in harsh environments (-40 to 75°C )

Features and Benefits

  • IEEE 802.11a/b/g/n/ac Wave 2 wireless client
  • Selectable dual-band Wi-Fi with data rates up to 867 Mbps
  • Latest WPA3 encryption for enhanced wireless network security
  • Universal (UN) models with configurable country or region code for more flexible deployment
  • Easy network setup with Network Address Translation (NAT)
  • Millisecond-level Client-based Turbo Roaming
  • Built-in 2.4 GHz and 5 GHz band pass filter for more reliable wireless connections
  • -40 to 75°C wide operating temperature range (-T models)
  • Integrated antenna isolation

Documentation

Spec Sheet
