AVX5016IP-US KVM IP Switch

AdderView 16-Port CATx KVM Switch, VGA Monitor Support, 16 Ports For Computer Access Modules (Sold Separately), Up To 5 Simultaneous Users - (1) Local User And (4) WAN Remote User Ports

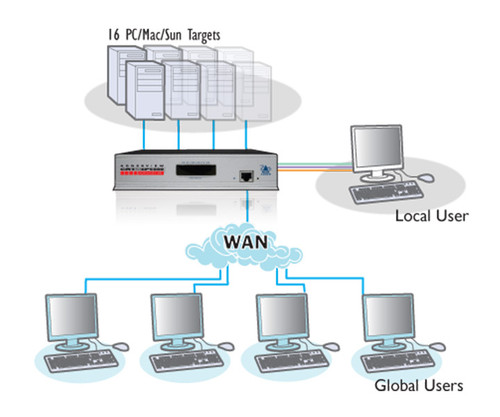

The ADDERView AVX5016 IP is the culmination of ADDER's KVM over IP expertise to date. This new device offers 4 non blocking simultaneous IP connections together with a local port (5 separate users), and allows the user to control 16 separate devices. The AVX5016 IP is very small and compact enabling you to fit two units side by side to support 32 computers and 10 sessions in just 1U of rack space.

Using ADDER's CAM modules, you can connect the switch via CAT5e cable to any type of server including PC, Mac and Sun. Country code reporting, DDC and continuous keyboard and mouse emulation further ensure faultless operation across your unique installation.

SERIAL CONSOLE SERVER (SCS):
The AVX5016 IP can also be used as a serial console (sometime known as a terminal server) simply by attaching the CATX-CONSOLE computer access module. This gives you out of band access to target command line interface (CLI) as well as console access to network switches. What makes the AVX5016 really unique is that you can mix as many of the 16 ports for use with either serial console or keyboard-video-mouse. This makes the AVX5016 one of the most flexible KVM over IP products on the market today.
