AVX4024-US CATx KVM Switch

AdderView 24-Port CATx KVM Switch, VGA Monitor Support, 24 Ports For Computer Access Modules (Sold Separately), Up To 4 Simultaneous Users - (1) Local User And Built-In KVM Extension Transmitters For (4) Remote Users (Remote Receivers Sold Separately), Includes 19" Rackmount Kit

The AVX4024-US can accommodate up to four simultaneous user connections, one local console or up to four remote users (via KVM extenders) with BIOS-level control of up to 24 multiplatform servers.

Features

• Faultless video quality
  The AdderView CATx series provides exceptionally high video performance to local, remote and global users alike, supporting up to 1900x1440 resolutions with DDC emulation (1600x1200 on IP links).
• True multi-platform support
  The AdderView CATx series supports PS/2, USB and Sun. Country code reporting, DDC and keyboard and mouse emulation ensure faultless operation.
• PS/2 or USB keyboard and mouse control
  Any PS/2 or USB style keyboard and mouse maybe used to control the AdderView CATx series.
• Easy cascade
  Expand using CATx cascade connections with simple user intuitive set up.
• Optional CD quality audio
  The AdderView CATx switches provide CD quality audio to users when optional audio enabled CIM modules are used.
• Power control
  Providing complete reboot function, the AdderLink CATx series interfaces with power switches via a dedicated RS232 port.
• Local User
  • Choice of PS/2 or USB keyboard and mouse control.

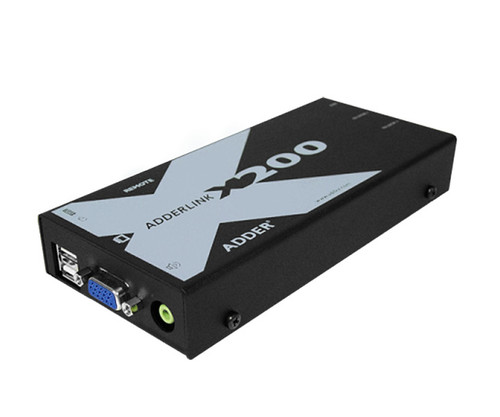

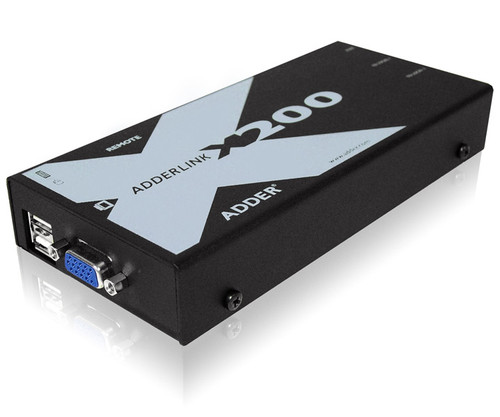

• Remote User
• Up to 300m from computer using Adder extenders.

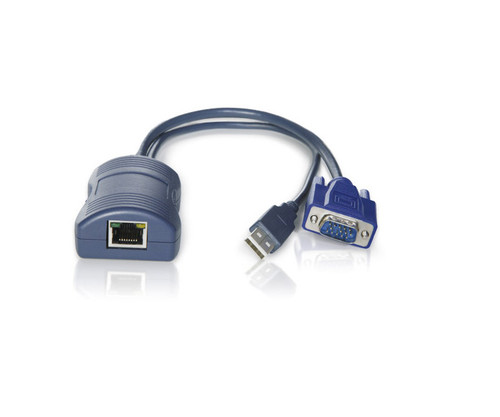

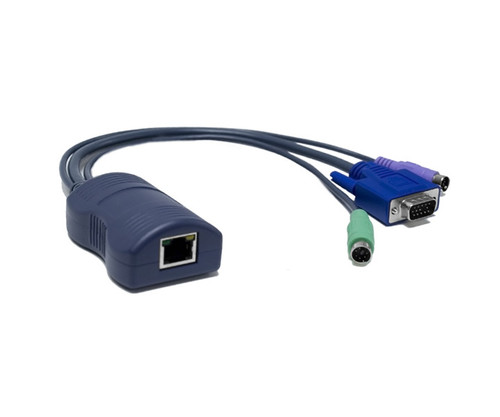

• Computer Access Modules (Sold Separately)
• Flash upgradeable CIMs available for PS/2, USB and Sun keyboard and mouse support with optional audio.

Example Diagram
