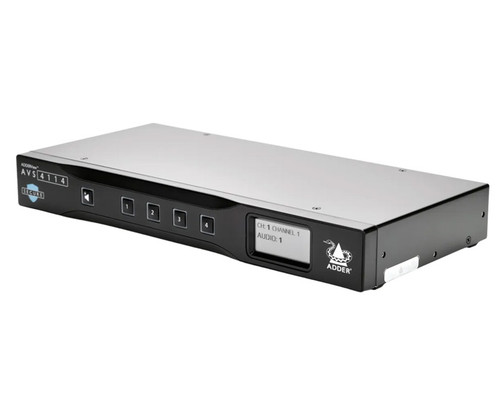

AVS-4114 KVM Switch

ADDERView AVS-4114 4K Video DisplayPort/HDMI Single Monitor 4-Port KVM Switch, USB Keyboard & Mouse, With Audio.

ADDERView® Secure AVS 4114

Secure KVM switch for sharing single or dual-head 4K video, USB keyboard and mouse, plus analog audio between four computers spanning multiple security classification levels.

ADDERView® Secure switches enable a KVM plus audio desktop to be shared between different classification level computers. Designed for superior usability, the switches feature configurable LED buttons and a real-time status display.

Video performance
Up to UHD 4K video resolution at 60 fps for
graphics intensive applications requiring very
high quality.

Automatic switching (configuration option)
Free-Flow KVM and audio control between ports without the need to press any buttons. Simply move the mouse between windows.

Audio hold
Assign the audio port to a specific computer while switching the KVM to other computers. Useful when a user needs to listen to audio from one computer, whilst working on another.

Channel identification
Reduce the chances of operator error by displaying a name for each channel and its security classification on the E-paper display. The color of the channel LED may also be configured to reflect the security classification.

Uni-directional keyboard and mouse data paths
Uni-directional optical diodes ensure data paths travel in only one direction, thus preventing data leakage through shared peripherals. A uni-directional structure also protects against timing analysis or forced malfunction attacks and prevents computers influencing the operation of any common circuitry.

Uni-directional video
Computer video input interfaces are isolated through use of separate electronic components and power. The display is isolated by a dedicated, read-only, EDID (Extended Display Identification Data) emulation for each computer. Access to the monitor’s EDID and MCCS (Monitor Control Command Set) commands are blocked.

Uni-directional audio
Enforces computer-to-speaker, one-way flow of sound through uni-directional optical data diodes. Prevents eavesdropping and line-in re-tasking by blocking speaker-to-computer communication.
