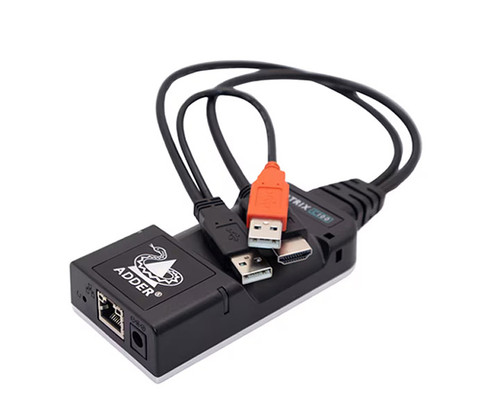

AVM-C110-CAM-HM Computer Access Module

AdderView Matrix C110 Single Monitor HMDI Computer Access Module (CAM), USB Keyboard & Mouse Plus Audio.

ADDERView Matrix C110 (HDMI)

An ADDERView Matrix C100 Series ZeroU™ IP KVM dongle for extension and matrix of video, audio and USB over a single cable.

The ADDERView Matrix C110 (HDMI) is a ZeroU™ Computer Access Module (CAM) with a HDMI connecter to enable computer systems to be attached to an ADDERView KVM system.

ZeroU™ Form Factor
The ADDERView Matrix C100 Series takes ZeroU of rack space in the server room allowing for ultimate flexibility and ease of installation.

USB Powered
Using less than 3 Watts, the device can be powered from USB. This means there is no need for an external PSU. Options for powering from an external PSU or redundant PSU are also available.

USB 2.0 with Class Control
Supports USB devices including graphics tablets, jog shuttles, joysticks, card readers and 3D explorers, alongside mass storage devices. The system can disable types of devices.

Perfect Digital Video in Real-Time
Using a spatially-lossless encoding system, with 1:1 pixel mapping, the device provides pixel-perfect and color accurate video with no artifacts.

Support for Dithered Video
Allows dithered analog or noisy video to pass through the system. Some Mac computers use this technique.

EDID Management
Intelligent EDID management allows either the true characteristics of the monitor to be passed back to the computer or a fixed one.

Digital Audio
The system can deliver USB stereo audio (bi-directional) or embedded video standard stereo audio (uni- directional).

Plug and Play
ADDERView Matrix devices are delivered in a zero config state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.
