ABC4017 Anybus Gateway

HMS

ABC4017 Anybus Gateway

Part #: ABC4017 In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
$913.00
ABC4017
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/Anybus-Profinet_IP-Modbus-TCP-server-ABC4017.pdf
hide_matrix:
True
in_stock:
False
sales_description:
HMS Anybus Communicator PROFINET IO-Device To Modbus TCP Server, DIN-Rail Mount, 12-30 VDC Powered, -25 to +70 deg. C.
parent_sku:
ABC4017
facet_application:
Industrial
facet_mounting:
DIN-Rail
facet_port_count:
1 to 4
facet_protocol_support:
Modbus TCP
facet_protocol_support:
PROFINET
facet_temperature_range:
Extended
facet_temperature_range:
Standard
Adding… The item has been added
Commonly Purchased with:
DINSpace BRKT-19DR-4U Rackmount DIN-Rail Adapter
$236.00
PULS ML15.241 Power Supply
$85.50

Details

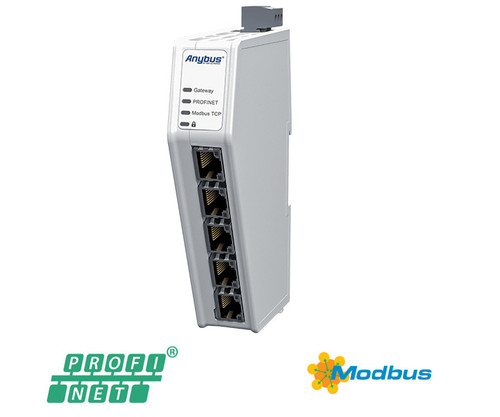

HMS Anybus Communicator PROFINET IO-Device To Modbus TCP Server, DIN-Rail Mount, 12-30 VDC Powered, -25 to +70 deg. C.

Anybus Communicator - PROFINET IO-Device - Modbus TCP server

The Anybus Communicator PROFINET IO-Device – Modbus TCP server is an industrial protocol gateway that allows you to seamlessly transfer data between PLC control systems over PROFINET and Modbus TCP networks.

Anybus Communicators are designed to ensure reliable, secure, and high-speed data transfer between different industrial Ethernet and Fieldbus networks. Very easy to install and deploy, the stand-alone gateways enable transparent data exchange between PLCs allowing you to both bridge and integrate legacy equipment into modern high-performance networks with only minimal changes to the software.

Anybus Communicators are built using the award-winning and proven Anybus NP40 industrial network processor providing network conformance, high performance, and reliability. When connecting between PLCs on different networks, extremely fast data cycling is enabled with data transfer of up to 1500 bytes in each direction, meeting most current control application needs as well as supporting future demands.

Quick installation is ensured thanks to the intuitive configuration, easy-to-understand documentation, and smart hardware and housing design.

Excellent performance

  • Instant data transfer - The time it takes to transfer data between two PLCs consists of the cycle time on the first network plus the cycle time on the second network. Internal data transfer in the Communicators is negligible as it’s in line with the natural variation of the network cycle times (jitter).
  • Hardware-accelerated endian conversion (byte swap) - The Communicators can change the data representation (endianness) through a hardware-accelerated endian conversion to ensure data is presented correctly in each PLC. You can even convert different parts of the data area in different ways to handle different data types. It has no impact on performance, offloads the PLC of the data conversion task, and simplifies PLC programming.

Easy to Use

  • Dedicated ethernet configuration port - no special cables required.
  • Intuitive web-based drag and drop configuration interface - no need to install any additional software.
  • Forward-facing ports make it easy to connect cables and the slim form factor saves space on the DIN rail.
  • Troubleshoot problems with powerful diagnostics including live data monitor, status screen, and support package.

Latest Security Features

  • Secure boot functionality to detect tampering with firmware and resist attacks and infection from malware.
  • Security switch which locks your configuration and prevents any unauthorized access.

Designed for industrial environments

  • Robust compact housing.
  • Industrial components are tested and certified according to CE and UL.
  • Wide temperate range, -25°C to 70°C.
  • DIN-rail mounting to enable installation close to connected devices, reducing the amount of wiring.

Documentation

Spec Sheet
