ABC3090 Anybus Gateway

HMS

ABC3090 Anybus Gateway

Part #: ABC3090 In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
$880.00
ABC3090
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/HMS-Anybus-Communicator-Ethernet-ABC3090.pdf
hide_matrix:
True
in_stock:
True
sales_description:
HMS Anybus Communicator RS-232/485/Modbus RTU Master To Modbus TCP/Ethernet IP/Profinet Gateway, DIN-Rail Mount, 12-30 VDC Powered, -25 to +70 deg. C.
parent_sku:
ABC3090
facet_application:
Industrial
facet_mounting:
DIN-Rail
facet_port_count:
1 to 4
facet_protocol_support:
Ethernet/IP
facet_protocol_support:
Modbus
facet_protocol_support:
Modbus TCP
facet_protocol_support:
PROFINET
facet_protocol_support:
RS-232/422/485
facet_temperature_range:
Extended
facet_temperature_range:
Standard
Adding… The item has been added
Commonly Purchased with:

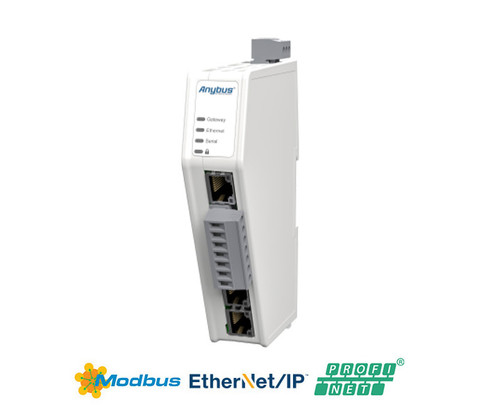

HMS ABC3090EX Anybus Communicator
$934.00
DINSpace BRKT-19DR-4U Rackmount DIN-Rail Adapter
$236.00

Details

HMS Anybus Communicator RS-232/485/Modbus RTU Master To Modbus TCP/Ethernet IP/Profinet Gateway, DIN-Rail Mount, 12-30 VDC Powered, -25 to +70 deg. C.

Anybus Communicator - Common Ethernet

Modbus RTU Master - Industrial Ethernet
Integrate your serial RS-232/485 based industrial devices and equipment to EtherNet/IP, Modbus TCP or PROFINET control systems without any changes to the device. Just connect, configure and you’re done.

The Anybus Communicator can transfer large amounts of data, is fast to configure thanks to its’ drag and drop web interface and is built on trusted Anybus technology.

CONVERT ALMOST ANY TYPE OF SERIAL PROTOCOL
The Communicator can convert both standard serial protocols such as Modbus RTU and proprietary serial request/response or produce/consume based protocols.

TYPICAL SERIAL APPLICATIONS
Typical serial applications include variable frequency drives, sensors, actuators, human machine interfaces, barcode readers, RFID readers and industrial scales among others.

Features and Benefits

  • Transfer up to 1 500 bytes of data in both directions
  • Selectable industrial ethernet network (EtherNet/IP, Modbus TCP or PROFINET)
  • Web-based drag and drop configuration interface
  • -25 to +70 deg. C industrial temperature range
  • Powered by award winning NP40 network processor

Serial Features

  • Selectable RS-232/485 interface
  • 3 ms serial update rate (selectable)
  • Visual I/O data map to map serial data to industrial network
  • Drag and drop frame builder for custom protocols, no programming required
  • Trigger serial transactions from control system with triggers
  • Transfer data between serial nodes with general data area
  • Monitor and control serial nodes from control system with live list and data exchange control
  • Ability to import Communicator Classic configuration file

Common Ethernet Features

  • Cover multiple protocols with a single gateway and reduce storage costs
  • Supports EtherNet/IP, Modbus TCP or PROFINET (Modbus TCP pre-loaded)
  • Transfer 1 448 bytes with EtherNet/IP, 1 500 bytes with Modbus TCP and 1 024 bytes with PROFINET to and from the gateway
  • Download your protocol firmware from the product support page (free)
  • Load your protocol firmware via the gateway web-configuration interface
  • Dual RJ45 Ethernet ports with 10/100 Mbit full duplex
  • Daisy chaining with integrated switch

Documentation

Spec Sheet
