AA205Ea Antenna

ESTeem

AA205Ea Antenna

Part #: AA205Ea In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
$265.00
AA205Ea
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/ESTeem-AA205Ea.pdf
hide_matrix:
True
in_stock:
False
sales_description:
ESTeem Antenna 5.8 GHz, Directional, 23 dBi, TNC-mrp,w/ 2.5' Pigtail.
parent_sku:
AA205Ea
facet_application:
Indoor
facet_application:
Outdoor
facet_connector:
RP-TNC
facet_connector:
TNC
facet_frequency_band:
Wi-Fi (2.4 GHz / 5 GHz)
facet_mounting:
Pole
facet_type:
Directional
Adding… The item has been added
Commonly Purchased with:
ESTeem AA20Ea Antenna
$225.00

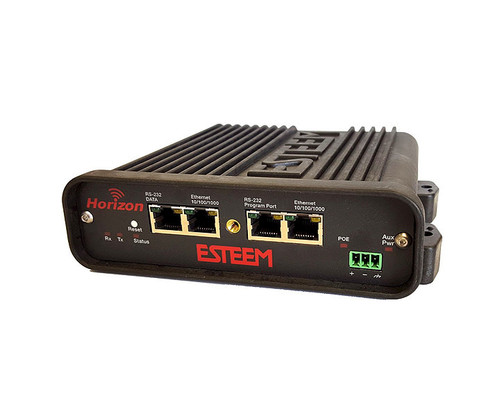

ESTeem Horizon5.8 Ethernet / Serial Radio
$2,699.00

Details

ESTeem Antenna 5.8 GHz, Directional, 23 dBi, TNC-mrp,w/ 2.5' Pigtail.

Features

  • Applications: Fixed base mounting.
  • Antenna Type: Directional, Single Linear Polarized Panel, DC grounded
  • Frequency: 4.94-4.99 & 5.15-5.875 GHz
  • Polarization: Vertical or Horizontal
  • Impedance: 50 ohms
  • Gain: 23 dBi nominal
  • VSWR: <1.5:1 nominal
  • Front to Back Ratio: > 40 dB
  • Horizontal Beamwidth: 10 degrees
  • Vertical Beamwidth: 10 degrees
  • Antenna Material: Gray UV Stabilized ABS Plastic radome with aluminum backplane
  • Mounting Hardware: Included zinc planted steel mounting bracket provides easy azimuth and elevation adjustment for pole mounting on masts between 1.4 in and 1.97 in. diameter.
  • Antenna Connector: TNC male with 2.5 ft. pig-tail and weatherproof boot.
  • Maximum Power Input: 30 Watts
  • Antenna Envelope: 13.8 in. length by 13.8 in. height by 1.0 in. depth
  • Operating Temperature: -40 to +158 deg F
  • Wind Survivability: 125 mph
  • Weight: 3.52 lbs.
  • Pole Mount Diameter Range: 1.4” to 1.97”

Documentation

Spec Sheet
