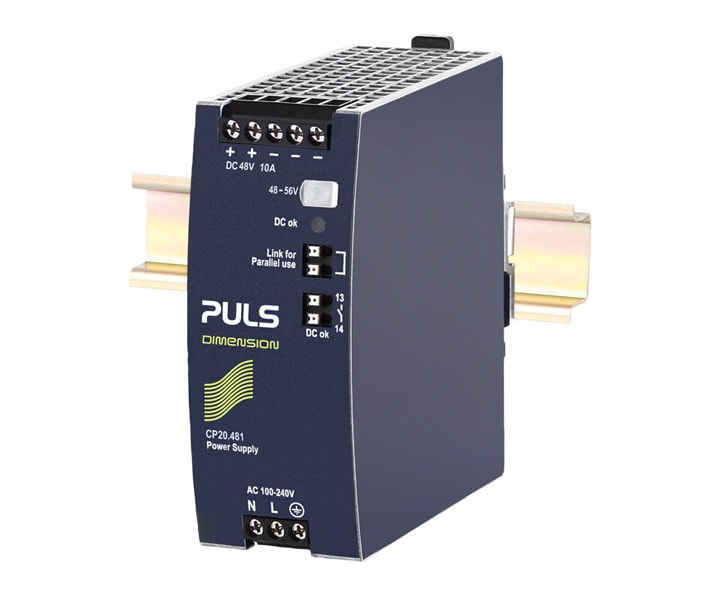

CP20.481 Power Supply

Product ID
CP20.481

Availability

DESCRIPTION

Puls Dimension CP-Series Reduced Width Single Phase Power Supply, 480W, 48-56VDC/10.0A Output, 100-240VAC & 100-150VDC Input, DIN-Rail Mount Metal Housing, -25° to +70°C, 20% Current Reserves, Class 1, Div. 2 Rated.

The Dimension CP-Series are cost optimized power supplies without compromising quality, reliability and performance. The most outstanding features of CP20.481 are the high efficiency, electronic inrush current limitation, active PFC, wide operational temperature range. The small size is achieved by a synchronous rectification, LLC technology and by many further technological design details.

Products of the CP series come with essential functions. The CP20.481 has a power reserve of 20% included, which may even be used continuously at temperatures up to +45 deg. C. Additionally, the device can deliver about 3 times the nominal output current for 12ms which helps to trip fuses on faulty output branches.

High immunity to transients and power surges as well as low electromagnetic emission, a DC-OK relay contact and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
