DESCRIPTION

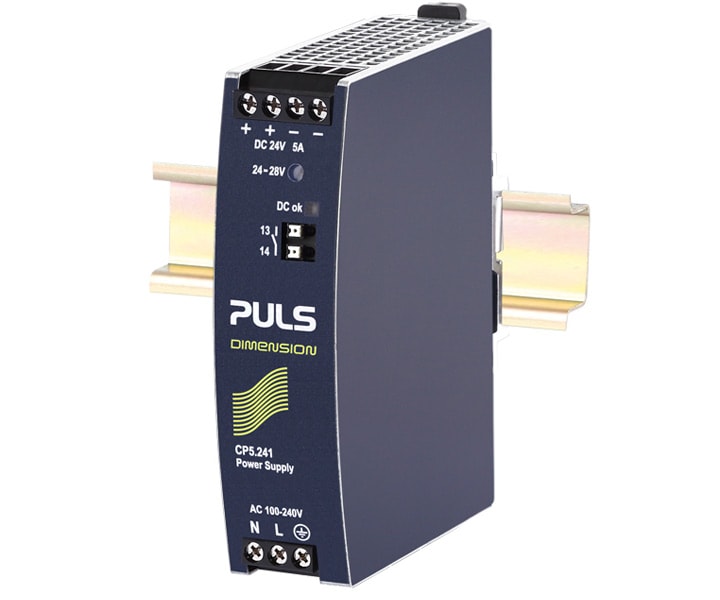

Puls Dimension CP-Series Reduced Width Single Phase Power Supply, 120W, 24-28VDC/5.0A Output, 100-240VAC & 100-150VDC Input, DIN-Rail Mount Metal Housing, -25° to +70°C, 20% Current Reserves, Class 1, Div. 2 Rated.
The Dimension CP-Series are cost optimized power supplies
without compromising quality, reliability and performance. The
CP-Series is part of the DIMENSION power supply family.
The CP5.241 power supplies come with three connection
terminal options: screw, spring-clamp or push-in terminals,
which are optimized for automated wiring.
The CP5.241-C1 is equipped with conformal coated pc-boards
preferred for the use in harsh environments and the CP5.242
features an enhanced DC input voltage range.
The most outstanding features of these units are the small size,
the high efficiency, the electronic inrush current limitation,
active PFC and the wide operational temperature range. The
devices have a power reserve of 20% included, which may even
be used continuously at temperatures up to +45 deg. C. Additionally,
they can deliver 3 times the nominal output current for 12ms
which helps to trip fuses on faulty output branches.
High immunity to transients and power surges as well as low
electromagnetic emission, a DC-OK signal contact for remote
monitoring, and a large international approval package for a
variety of applications makes this unit suitable for nearly every
situation.
