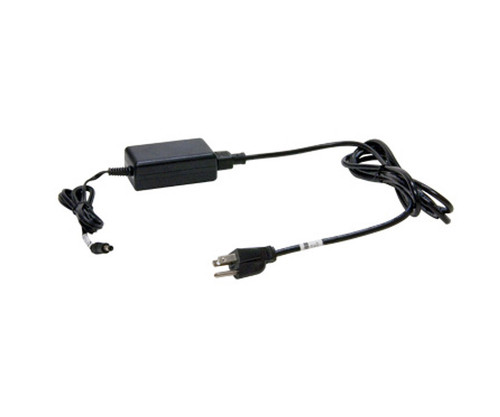

76000752 Extended Temp Power

Digi

76000752 Extended Temp Power

Part #: 76000752 In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
$85.00
76000752
hide_matrix:
True
in_stock:
False
sales_description:
Digi 12 VDC Extended Temperature Hardened Power Supply With Locking Barrel Connector.
parent_sku:
76000752
facet_accessories:
Power Supply
Adding… The item has been added
Commonly Purchased with:
TT420F Temp Sensor
$381.94
TT420Z 4" Probe Temp Sensor
$250.00

Details

Digi 12 VDC Extended Temperature Hardened Power Supply With Locking Barrel Connector.

Input Specifications:

  • Rated input voltage rating: 100VAC to 240VAC
  • Input frequency: 47 Hz to 63 Hz
  • Rated input current: 0.4A (rms) max. for 115VAC, 0.2 A (rms) max. for 230VAC
  • Max. in-rush current: 25A MAX. @ 115VAC, 50A max. @ 230VAC at 25° C ambient cold start.
  • Input Plug Type: NEMA 5-15P (NA)
  • Leakage current: 1.0 mA max @230Vac.

Output Specifications:

  • Output Voltage: 12VDC
  • Load current: 1.0A
  • Output Plug: 9.5 x 5.5 x 2.1mm locking barrel plug
  • Max. output power: 12 watts continuous

Environment:

  • Operating Temperature: -35° C to 74° C
  • Storage Temperature: -35° C to 85° C

Dimensions:

  • Size: 93 x 57 x 34mm
  • Cord Length: 10ft

Approvals:

  • Certifications: UL, cUL, CE
