TN-5508A/5516A Series Switches
TN-5508A/5516A Series Switches

Moxa

TN-5508A/5516A Series Switches

Part #: TN-5508A/5516A Series In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $2,218.82
TN-5508A/5516A Series
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/TN-5508A_5516A_Series.pdf
hide_matrix:
False
sales_description:
Moxa TN-5508A/TN-5516A EN50155 managed machine mount Ethernet switches, dual redundant power inputs (24-110 VDC), -40 to 75 deg. C with conformal coating, port type and quantity vary by model. (Please Specify Model Number.)
parent_sku:
TN-5508A/5516A Series
facet_certification:
Rail
facet_form_factor:
Fixed
facet_management:
Managed - Layer 2
facet_mounting:
Machine Mount (M12)
facet_port_count:
13 to 24
facet_port_count:
7 to 12
facet_port_speed:
10/100
facet_port_types:
Copper Only
facet_port_types:
M12
facet_power_considerations:
High Voltage (Typically 110-240 VAC or 110-250 VDC)
facet_power_considerations:
Low Voltage (Typically 12/24/48 VDC)
facet_temperature_range:
Extended
facet_temperature_range:
Standard
Adding… The item has been added
Commonly Purchased with:
Belden 7938A B59500 Copper Cable - 500FT
$3,834.40

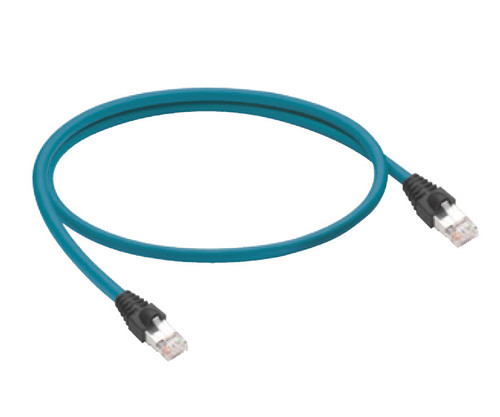

Hirschmann RJ45/M12 CAT 5e Patch Cable - Unshielded
$27.11
See Options

Models

Product ID Description Price
TN-5508A-WV-T Moxa TN-5508A EN50155 managed Ethernet switch with 8 x 10/100BaseT(X) ports with M12 connectors, dual redundant power inputs (24-110 VDC), -40 to 75 deg. C $2,218.82
TN-5508A-WV-CT-T Moxa TN-5508A EN50155 managed Ethernet switch with 8 x 10/100BaseT(X) ports with M12 connectors, dual redundant power inputs (24-110 VDC), -40 to 75 deg. C with conformal coating $2,394.04
TN-5516A-WV-T Moxa TN-5516A EN50155 managed Ethernet switch with 16 x 10/100BaseT(X) ports with M12 connectors, dual redundant power inputs (24-110 VDC), -40 to 75 deg. C $3,009.09
TN-5516A-WV-CT-T Moxa TN-5516A EN50155 managed Ethernet switch with 16 x 10/100BaseT(X) ports with M12 connectors, dual redundant power inputs (24-110 VDC), -40 to 75 deg. C with conformal coating $3,271.04

Details

Moxa TN-5508A/TN-5516A EN50155 managed machine mount Ethernet switches, dual redundant power inputs (24-110 VDC), -40 to 75 deg. C with conformal coating, port type and quantity vary by model. (Please Specify Model Number.)

The ToughNet TN-5500A series M12 managed Ethernet switches are designed for railway applications, such as rolling stock, and wayside installations. The TN series switches use M12 and other circular connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. The TN-5500A series Ethernet switches provide 8 or 16 Fast Ethernet M12 ports with or without 8 IEEE 802.3at/af compliant PoE (Power-over-Ethernet) ports. The PoE switches are classified as power source equipment (PSE) and provide up to 30 watts of power per port, and can be used to power IEEE 802.3at/af compliant powered devices (PDs), such as IP cameras, wireless access points, and IP phones. In addition, the 24 to 110 VDC wide power input range and isolated power inputs not only allow you to use the same type of power source at different sites around the globe, but also increase the reliability of your communications system. In addition, the -40 to 75°C operating temperature and IP54-rated waterproof enclosure allow deployment in harsh environments. Moreover, the TN-5500A series is compliant with the essential sections of EN 50155, covering operating temperature, power input voltage, surge, ESD and vibration, making the switches suitable for a variety of industrial applications.

Features & Benefits

  • IPv6 Ready logo awarded (IPv6 Logo Committee certified)
  • Leading EN 50155-compliant PoE switches for rolling stock applications
  • DHCP Option 82 for IP address assignment with different policies
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
  • IGMP snooping and GMRP for filtering multicast traffic
  • EtherNet/IP and Modbus/TCP industrial Ethernet protocols supported
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • QoS (IEEE 802.1p/1Q and ToS/DiffServ) allows real-time traffic classification and prioritization
  • IEEE 802.3ad, LACP for optimum bandwidth utilization

Documentation

Spec Sheet
