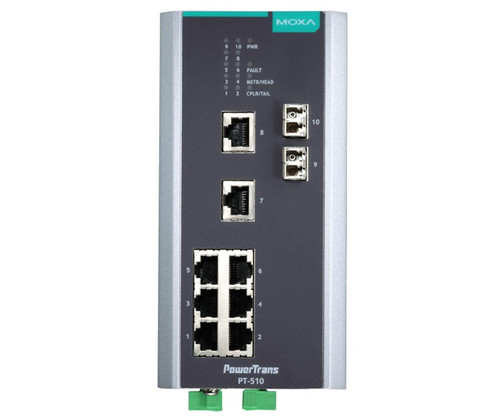

PT-510 Series Switches
PT-510 Series Switches
PT-510 Series Switches
PT-510 Series Switches
PT-510 Series Switches

Moxa

PT-510 Series Switches

Part #: PT-510 Series In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $1,928.01
PT-510 Series
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/PT-510_Series.pdf
hide_matrix:
False
sales_description:
Moxa PT-510 Series 10-Port Managed Industrial Ethernet Switches, IEC 61850-3 Compliant. (Please Specify Model Number.)
parent_sku:
PT-510 Series
facet_certification:
Substation
facet_form_factor:
Fixed
facet_management:
Managed - Layer 2
facet_mounting:
DIN-Rail
facet_port_count:
7 to 12
facet_port_speed:
10/100
facet_port_types:
Multimode
facet_port_types:
RJ45
facet_port_types:
SC
facet_port_types:
ST
facet_port_types:
Singlemode
facet_power_considerations:
High Voltage (Typically 110-240 VAC or 110-250 VDC)
facet_power_considerations:
Low Voltage (Typically 12/24/48 VDC)
facet_temperature_range:
Extended
facet_temperature_range:
Standard
Adding… The item has been added
Commonly Purchased with:
DINSpace BRKT-19DR-5U-CM Rackmount DIN-Rail Adapter
$300.00
Hirschmann RJ45/M12 CAT 5e Patch Cable - Unshielded
$27.11
See Options

Models

Product ID Description Price
PT-510-MM-SC-24 Moxa IEC 61850-3 Managed Ethernet Switch with 8 x 10/100BaseT(X) Ports, and 2 x 100BaseFX Multimode Ports with SC Connectors, 24 VDC Powered, -40 to 85 deg. C. $2,231.94
PT-510-MM-SC-48 Moxa IEC 61850-3 Managed Ethernet Switch with 8 x 10/100BaseT(X) Ports, and 2 x 100BaseFX Multimode Ports with SC Connectors, 48 VDC Powered, -40 to 85 deg. C. $2,231.94
PT-510-MM-ST-24 Moxa IEC 61850-3 Managed Ethernet Switch with 8 x 10/100BaseT(X) Ports, and 2 x 100BaseFX Multimode Ports with ST Connectors, 24 VDC Powered, -40 to 85 deg. C. $2,231.94
PT-510-MM-ST-48 Moxa IEC 61850-3 Managed Ethernet Switch with 8 x 10/100BaseT(X) Ports, and 2 x 100BaseFX Multimode Ports with ST Connectors, 48 VDC Powered, -40 to 85 deg. C. $2,231.94
PT-510-MM-LC-24 Moxa IEC 61850-3 Managed Ethernet Switch with 8 x 10/100BaseT(X) Ports, and 2 x 100BaseFX Multimode Ports with LC Connectors, 24 VDC Powered, -40 to 85 deg. C. $2,231.94
PT-510-MM-LC-48 Moxa IEC 61850-3 Managed Ethernet Switch with 8 x 10/100BaseT(X) Ports, and 2 x 100BaseFX Multimode Ports with LC Connectors, 48 VDC Powered, -40 to 85 deg. C. $2,231.94
PT-510-SS-LC-24 Moxa IEC 61850-3 Managed Ethernet Switch with 8 x 10/100BaseT(X) Ports, and 2 x 100BaseFX Singlemode Ports with LC Connectors, 24 VDC Powered, -40 to 85 deg. C. $2,385.38
PT-510-SS-LC-48 Moxa IEC 61850-3 Managed Ethernet Switch with 8 x 10/100BaseT(X) Ports, and 2 x 100BaseFX Singlemode Ports with LC Connectors, 48 VDC Powered, -40 to 85 deg. C. $2,385.38
PT-510-SS-SC-24 Moxa IEC 61850-3 Managed Ethernet Switch with 8 x 10/100BaseT(X) Ports, and 2 x 100BaseFX Singlemode Ports with SC Connectors, 24 VDC Powered, -40 to 85 deg. C. $2,654.58
PT-510-SS-SC-48 Moxa IEC 61850-3 Managed Ethernet Switch with 8 x 10/100BaseT(X) Ports, and 2 x 100BaseFX Singlemode Ports with SC Connectors, 48 VDC Powered, -40 to 85 deg. C. $2,654.58
PT-510-3S-SC-24 Moxa IEC 61850-3 Managed Ethernet Switch with 7 x 10/100BaseT(X) Ports, and 3 x 100BaseFX Singlemode Ports with SC Connectors, 24 VDC Powered, -40 to 85 deg. C. $2,826.43
PT-510-3S-SC-48 Moxa IEC 61850-3 Managed Ethernet Switch with 7 x 10/100BaseT(X) Ports, and 3 x 100BaseFX Singlemode Ports with SC Connectors, 48 VDC Powered, -40 to 85 deg. C. $2,826.43
PT-510-4M-ST-24 Moxa IEC 61850-3 Managed Ethernet Switch with 6 x 10/100BaseT(X) Ports, and 4 x 100BaseFX Multimode Ports with ST Connectors, 24 VDC Powered, -40 to 85 deg. C. $2,548.92
PT-510-4M-ST-48 Moxa IEC 61850-3 Managed Ethernet Switch with 6 x 10/100BaseT(X) Ports, and 4 x 100BaseFX Multimode Ports with ST Connectors, 48 VDC Powered, -40 to 85 deg. C. $2,548.92
PT-510-3S-SC-HV Moxa IEC 61850-3 Managed DIN-Rail Ethernet Switch, with 7 x 10/100BaseT(X) Ports, and 3 x 100BaseFX Singlemode Ports with SC connectors, 1 Isolated Power Supply (88-300 VDC or 85-264 VAC), -40 to 85 deg. C. $2,451.57
PT-510-4M-ST-HV Moxa IEC 61850-3 Managed DIN-Rail Ethernet Switch, with 6 x 10/100BaseT(X) Ports, and 4 x 100BaseFX Multimode Ports with ST connectors, 1 Isolated Power Supply (88-300 VDC or 85-264 VAC), -40 to 85 deg. C. $2,205.52
PT-510-MM-LC-HV Moxa IEC 61850-3 Managed DIN-Rail Ethernet Switch, with 8 x 10/100BaseT(X) Ports, and 2 x 100BaseFX Multimode Ports with LC connectors, 1 Isolated Power Supply (88-300 VDC or 85-264 VAC), -40 to 85 deg. C. $1,928.01
PT-510-MM-SC-HV Moxa IEC 61850-3 Managed DIN-Rail Ethernet Switch, with 8 x 10/100BaseT(X) Ports, and 2 x 100BaseFX Multimode Ports with SC connectors, 1 Isolated Power Supply (88-300 VDC or 85-264 VAC), -40 to 85 deg. C. $1,928.01
PT-510-MM-ST-HV Moxa IEC 61850-3 Managed DIN-Rail Ethernet Switch, with 8 x 10/100BaseT(X) Ports, and 2 x 100BaseFX Multimode Ports with ST connectors, 1 Isolated Power Supply (88-300 VDC or 85-264 VAC), -40 to 85 deg. C. $1,928.01
PT-510-SS-LC-HV Moxa IEC 61850-3 Managed DIN-Rail Ethernet Switch, with 8 x 10/100BaseT(X) Ports, and 2 x 100BaseFX Singlemode Ports with LC connectors, 1 Isolated Power Supply (88-300 VDC or 85-264 VAC), -40 to 85 deg. C. $2,060.09
PT-510-SS-SC-HV Moxa IEC 61850-3 Managed DIN-Rail Ethernet Switch, with 8 x 10/100BaseT(X) Ports, and 2 x 100BaseFX Singlemode Ports with SC connectors, 1 Isolated Power Supply (88-300 VDC or 85-264 VAC), -40 to 85 deg. C. $2,297.83

Details

Moxa PT-510 Series 10-Port Managed Industrial Ethernet Switches, IEC 61850-3 Compliant. (Please Specify Model Number.)

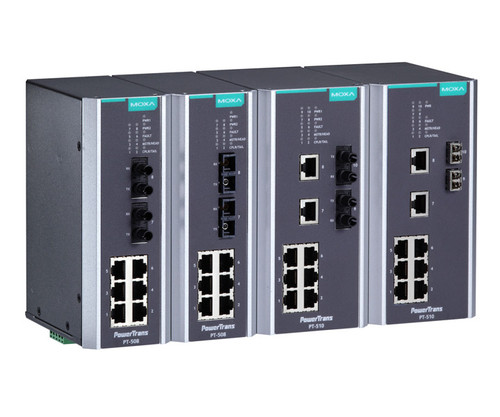

The PowerTrans PT-510 Series is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-510’s optical fiber Fast Ethernet backbone, redundant ring, redundant power inputs (24 VDC or 48 VDC), and isolated power inputs (24 VDC, 48 VDC, or 110/220 VDC/VAC) increase the reliability of your communications and save on cabling/wiring costs. In addition, the DIN-rail and wall-mounting design of the PT-510 makes network planning easy, and allows greater flexibility by letting you install up to 10 Fast Ethernet ports for power distribution applications.

Features and Benefits

  • IEC 61850-3 and IEEE 1613 compliant
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  • Isolated universal 24 VDC or 48 VDC redundant power inputs
  • Wide 110/220 VDC/VAC power supply range
  • Modbus TCP, LLDP, SNMP Inform, QoS, IGMP snooping, VLAN, IEEE 802.1X, HTTPS, SNMPv3, and SSH supported
  • -40 to 85°C operating temperature range
