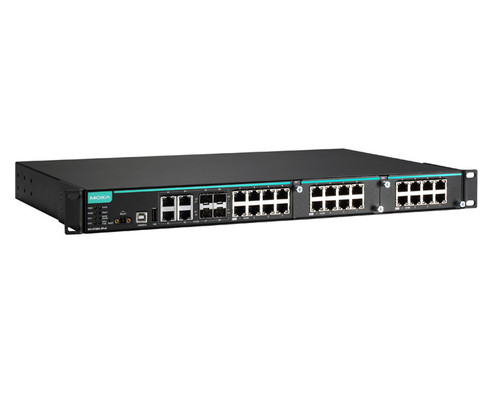

IKS-6728A-8PoE Series Switches

Moxa

IKS-6728A-8PoE Series Switches

Part #: IKS-6728A-8PoE Series In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $2,589.88
IKS-6728A-8PoE Series
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/IKS-6728A-8PoE_Series.pdf
hide_matrix:
False
sales_description:
Moxa IKS-6728A-8PoE Series 24+4G-port Gigabit Modular Managed PoE+ Ethernet Switches. (Please Specify Model Number.)
parent_sku:
IKS-6728A-8PoE Series
facet_certification:
Rail
facet_form_factor:
Modular
facet_management:
Managed - Layer 2
facet_mounting:
Rackmount
facet_port_count:
24+
facet_port_speed:
Partial GB
facet_port_types:
Multimode
facet_port_types:
RJ45
facet_port_types:
SC
facet_port_types:
SFP Fiber
facet_port_types:
ST
facet_port_types:
Singlemode
facet_power_considerations:
High Voltage (Typically 110-240 VAC or 110-250 VDC)
facet_power_considerations:
Low Voltage (Typically 12/24/48 VDC)
facet_power_considerations:
PoE Support
facet_temperature_range:
Extended
facet_temperature_range:
Standard
Adding… The item has been added
Commonly Purchased with:
Belden 7923A 0101000 Copper Cable - 1000FT
$1,483.50
Belden AX103114 Patch Panel
$59.97

Models

Product ID Description Price
IKS-6728A-8PoE-4GTXSFP-48-48-T Moxa Modular Managed Ethernet Switch with 8 x 10/100BaseT(X) PoE+ Ports (Up to 24 Total With Addition of PoE+ Modules), 4 x 10/100/1000BaseT(X) or 1000BaseSFP Combo Ports, and 2 Slots for Fast Ethernet Modules, 2 Isolated Power Supplies (48 VDC), -40 to 75 deg C. (SFP Modules Sold Separately). $3,422.40
IKS-6728A-8PoE-4GTXSFP-48-T Moxa Modular Managed Ethernet Switch with 8 x 10/100BaseT(X) PoE+ Ports (Up to 24 Total With Addition of PoE+ Modules, 4 x 10/100/1000BaseT(X) or 1000BaseSFP Combo Ports, and 2 Slots for Fast Ethernet Modules, 1 Isolated Power Supply (48 VDC), -40 to 75 deg C. (SFP Modules Sold Separately). $3,046.06
IKS-6728A-8PoE-4GTXSFP-HV-HV-T Moxa Modular Managed Ethernet Switch with 8 x 10/100BaseT(X) PoE+ Ports (Up to 24 Total With Addition of PoE+ Modules, 4 x 10/100/1000BaseT(X) or 1000BaseSFP Combo Ports, and 2 Slots for Fast Ethernet Modules, 2 Isolated Power Supplies (85-264 VAC), -40 to 75 deg C. (SFP Modules Sold Separately). $2,966.81
IKS-6728A-8PoE-4GTXSFP-HV-T Moxa Modular Managed Ethernet Switch with 8 x 10/100BaseT(X) PoE+ Ports (Up to 24 Total With Addition of PoE+ Modules, 4 x 10/100/1000BaseT(X) or 1000BaseSFP Combo Ports, and 2 Slots for Fast Ethernet Modules, 1 Isolated Power Supply (85-264 VAC), -40 to 75 deg C. (SFP Modules Sold Separately). $2,589.88

Details

Moxa IKS-6728A-8PoE Series 24+4G-port Gigabit Modular Managed PoE+ Ethernet Switches. (Please Specify Model Number.)

24+4G-port Gigabit modular managed PoE+ Ethernet switches
The Moxa IKS-6728A-8PoE series of Gigabit modular managed PoE+ Ethernet switches are designed to meet the demands of mission critical applications for business and industry. The IKS-6728A-8PoE comes standard with up to 24 10/100BaseT(X), or PoE/PoE+, and 4 combo Gigabit Ethernet ports. The IKS-6728A-8PoE Ethernet switches provide up to 30 watts of power per PoE+ port in standard mode, and also support high power output of up to 36 watts for heavy-duty industrial PoE devices, such as weather-proof IP surveillance cameras with wipers/heaters, high-performance wireless access points, and rugged IP phones. IKS-6728A-8PoE Ethernet switches support two types of power input sources: 48VDC for PoE+ ports and system power, and 110/220 VAC for system power. These Ethernet switches also support a variety of management functions, including STP/RSTP, Turbo Ring, Turbo Chain, PoE power management, PoE device autochecking, PoE power scheduling, PoE diagnostic, IGMP, VLAN, QoS, RMON, bandwidth management, and port mirroring. The IKS-6728A-8PoE series is designed especially for harsh outdoor applications with 3kV surge protection to ensure the uninterrupted reliability of PoE systems.

Features & Benefits

  • 8 built-in PoE+ ports compliant with IEEE 802.3af/at
  • Up to 36 W output per PoE+ port
  • 3 kV LAN surge protection for extreme outdoor environments
  • PoE diagnostics for powered-device mode analysis
  • 4 Gigabit combo ports for high bandwidth communication
  • -40 to 75°C operating temperature range at 720 W full loading

Documentation

Spec Sheet
