ECSD3201U00 RJ45 Connector

Product ID
ECSD3201U00

Availability

DESCRIPTION

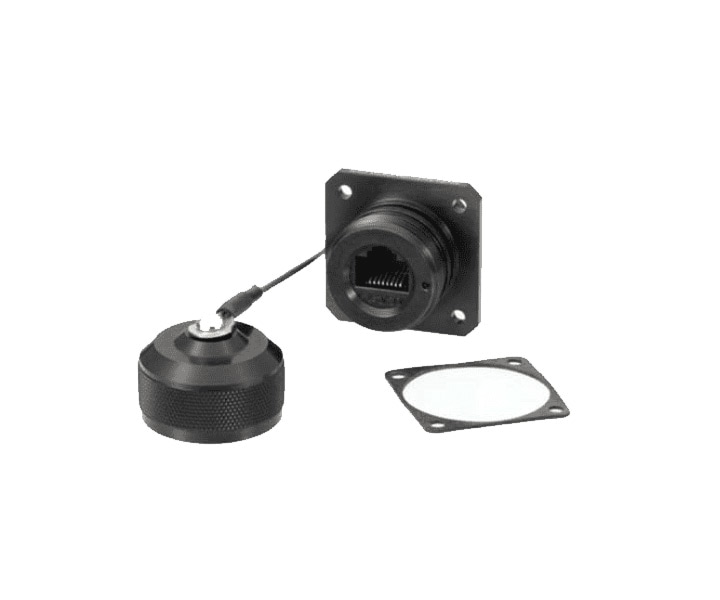

Optical Cable Corporation R-Jack Industrial RJ45 Female to RJ45 Female Connector, CAT 6, Flange Mounted Receptical with Dust Cap, Black Anodized Metal housing.

R-JACK™ Ethernet Interconnect Solution

In today’s world of high-speed communications, Ethernet has become the platform for all voice, video and data services. R-JACK™ Ethernet Interconnect Solution, OCC’s ruggedized family of RJ-45 receptacles, plugs, back shells and accessories, empowers customers to extend Ethernet platforms into harsh military and industrial operating environments.

The R-JACK™ Ethernet Interconnect Solution provides an efficient, comprehensive and affordable solution to Ethernet connectivity in harsh and environmentally challenged applications. R-JACK™ Ethernet components feature a smaller mechanical footprint (receptacles, dust caps, backshells), occupying less panel space, allowing higher density. R-JACK™ Ethernet receptacles feature 100% transversely sealed (IP-68) configurations as a standard product design, preventing dust, water or moisture penetration, with or without dust cap or plug engagement. R-JACK™ Ethernet receptacles offer comprehensive shielding and grounding effectiveness capable of sustaining higher data transmission rates as well as Electro-Magnetic Conductance (EMC) for military applications. Lastly, R-JACK™ Ethernet components feature multiple pre-kitted solutions including gaskets, O-rings, mounting brackets, and hardware, making it easier for customers to procure, install and integrate these components.

Applications

• DATA, VOIP, IPTV in Harsh Environments
• Railways
• Radar Systems
• Industrial Process Control
• Data Acquisition and Control
• Shelters
• Battlefield Communication Systems
• 10/100/1000 Base-T

Features and Benefits

• Conforms to MIL-DTL-83723 and MIL-DTL-38999 mechanical specifications:
  • Smaller profile affords tighter panel density with ample space to remove dust cap, unlike other MIL-DTL38999 style products
• MIL-DTL-38999 form-fits receptacles available:
  • Both MIL-DTL-38999 equivalent jam-nut and flange receptacle versions are available and feature smaller dust cap profiles
• Transversely sealed, standard feature for jam-nut, flange-mount and in-line receptacles:
  • Meets/exceeds ip-68 rating with or without dust covers engaged or when plug is engaged with receptacle
• Common cable strain relief back shell with conductive compressive fittings for shielded cable
  • Designed to integrat with jam-nut, flange-mount, in-line receptacles and plugs
  • Compression nut establishes 10 lb cable strain relief
  • Internal conductive compression developed inter-operate with cable braid to form 360 degree ground plane
• Pre-provisioned mounting hardware, conductive o-rings, gasket options
  • Mounting hardware options for flange-mount units include:
  • No mounting hardware
  • Screws with "pressed in" pem nuts
  • Screws with nylon "locking" nuts
  • Screws with mounting bracket
  • Self sealing screws for "sealed" flange-mount options
  • Nitrile or conductive o-ring, gaskets supplied as standard provision
