DESCRIPTION

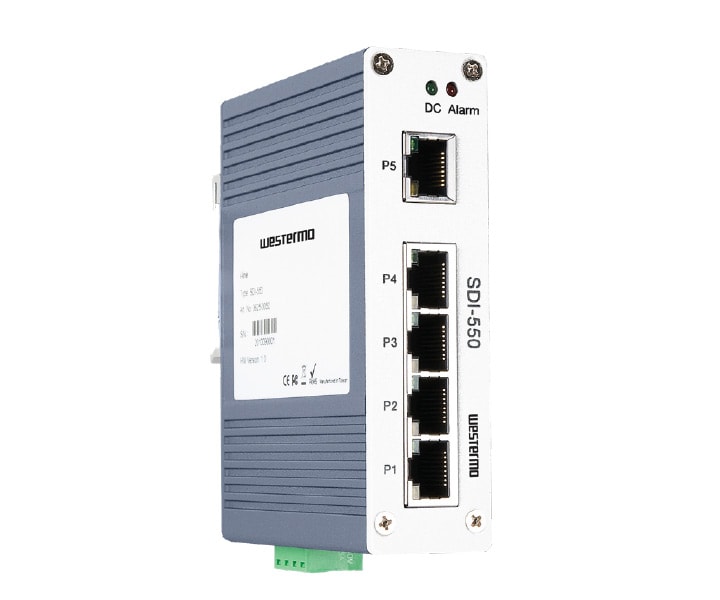

Westermo SDI Series Unmanaged Industrial Ethernet Switches. (Please Specify Model.)

A high speed switch core ensures full speed on all ports and transparency to any Ethernet protocol.

The unit is designed for DIN rail mounting into industrial cabinets allowing simple Ethernet connections to be established between PLCs, I/O units, drives, inverters and HMIs.

The SDI series is easy to use, simply connect power to the screw terminals and plug in your RJ-45 cables. If you plan to use the fault contacts a DIP switch allows configuration whilst LEDs provide simple diagnostics if required. A broadcast storm filter helps out if a loop is created by mistake.

Features and Benefits

Basic automation connectivity solution
- Up to 8-ports 10/100 TX and Base-FX fiber ports
- Compact Fast Ethernet Switch
- 3.2Gbit/s Switch Fabric with excellent data exchange performance
Designed for easy industrial installation
- DIN rail mount
- Variable power input, AC 18 – 27 V / DC 18 – 32 V
- Fault relay alarm
Operation within industrial environments
- Aluminum case with IP-31 grade protection
- -10 ~ 60 deg. C operating temperature
Easy configuration and use
- DIP switch fault contact configuration
- No user set up required
- Broadcast storm filter
